Fuji Xerox Color 550 User Manual

Machine Components
37
Product Overview
2

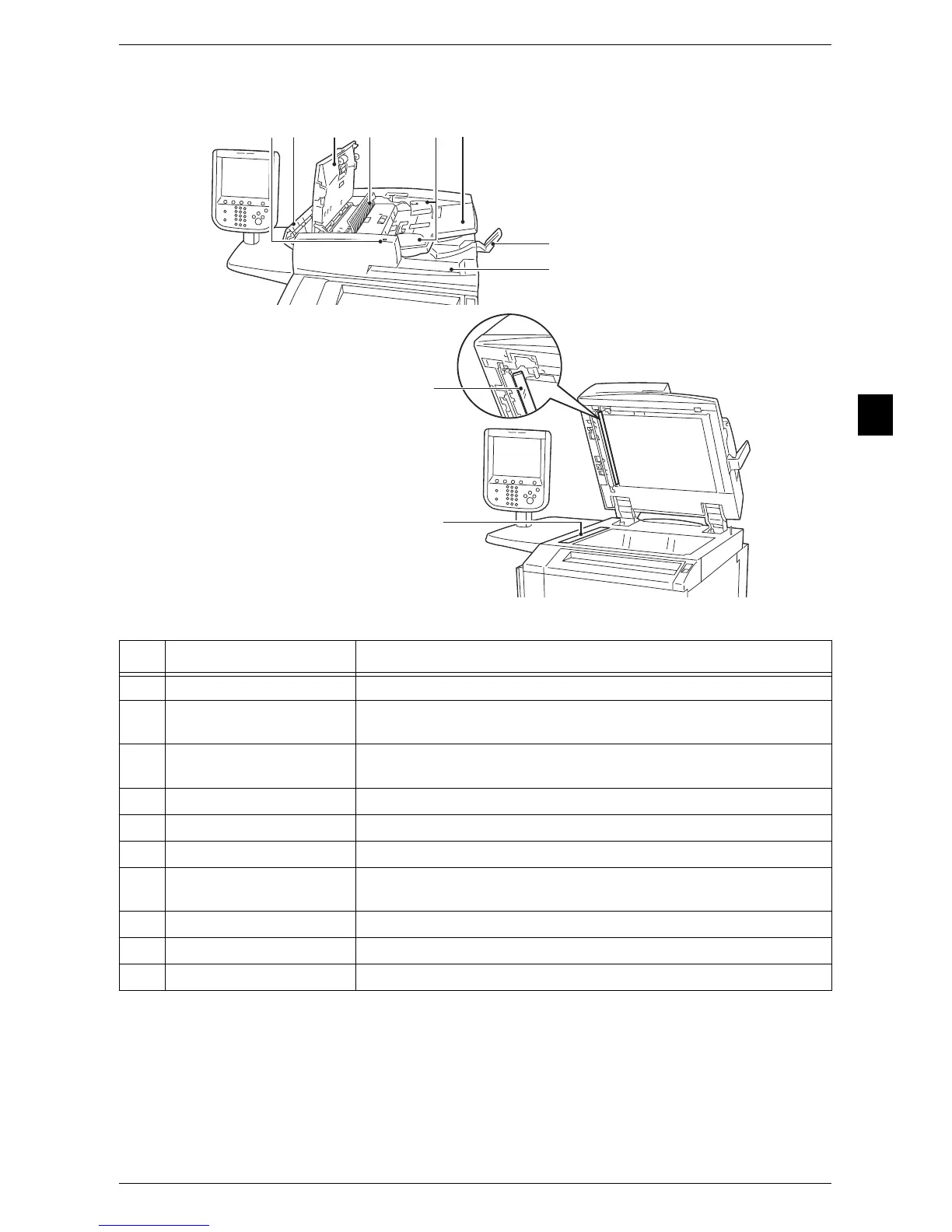

Duplex automatic document feeder
Note • In this guide, the duplex automatic document feeder (optional) is referred to as the
“document feeder” or “DADF”.
No. Component Function
1 <Confirmation> indicator This indicator lights to confirm that the document is loaded correctly.
2 Left cover The left cover slightly opens when the top cover is opened. Open this
cover widely to clear paper jams.
3 Top cover Open this cover to access the insides of the machine to clear paper
jams.
4 Inner cover Open this cover to clear paper jams.
5 Document guides Use these guides to align the edges of documents.
6 Document feeder tray Load documents here.
7 Document stopper Used when copying or printing large size documents, such as A3-sized
documents. Open the stopper rightward when using it.
8 Document output tray Receives documents.
9 Narrow glass strip Scans the back side of a loaded document.
10 Document glass Scans a loaded document.
8
7
12 3 5 6
4
9
10
