3. Machine Set Up QD002-07
100 NXT Setup Manual
<For the Independent 4M Base (serial No. 295 and later)>
Connecting the Bases
After attaching the signal cables and pneumatic connections, fasten neighboring bases
using the special bracket. Refer to section 3.8.13 "Fastening Extensions" for details.

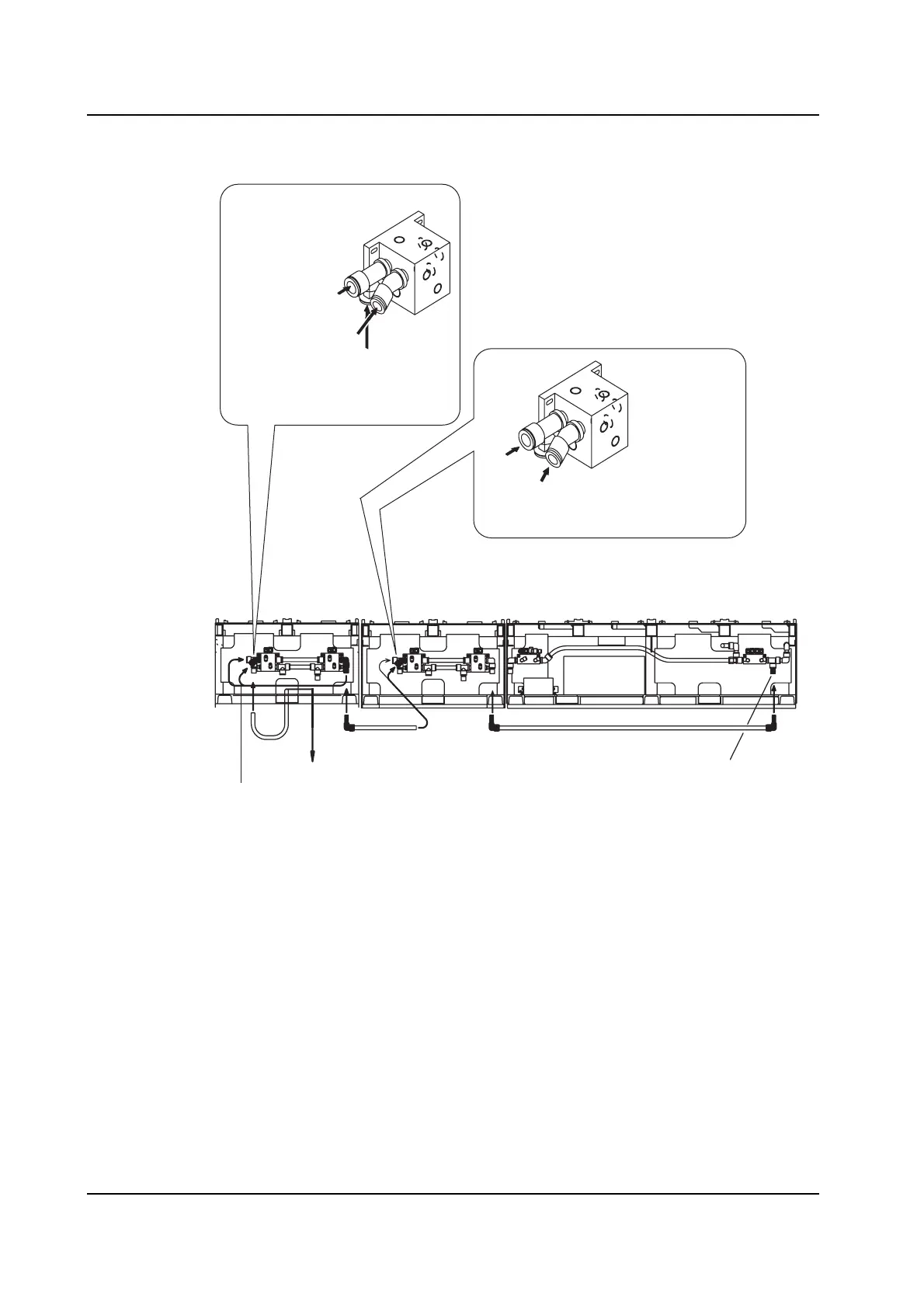

T2 tubes (2)
Dependent
2M base
Dependent
2M base
Reuse the plugs.
Remove the plugs (2), and then connect the T1 tubes.
NXTSET031Ea
Remove the plugs (2) from these two
locations, and then connect the T2 tubes.
To vacuum pump box
Attach the used plugs to locations A.
Remove the plug from B, and then
connect the tube to the vacuum
pump box.
A
B
A
T1 tubes (2)
Independent 4M base
