FujiFilm NXT - Using One 4 M Base and an Independent 4 M Base (2)

QD002-07 3. Machine Set Up
NXT Setup Manual 99

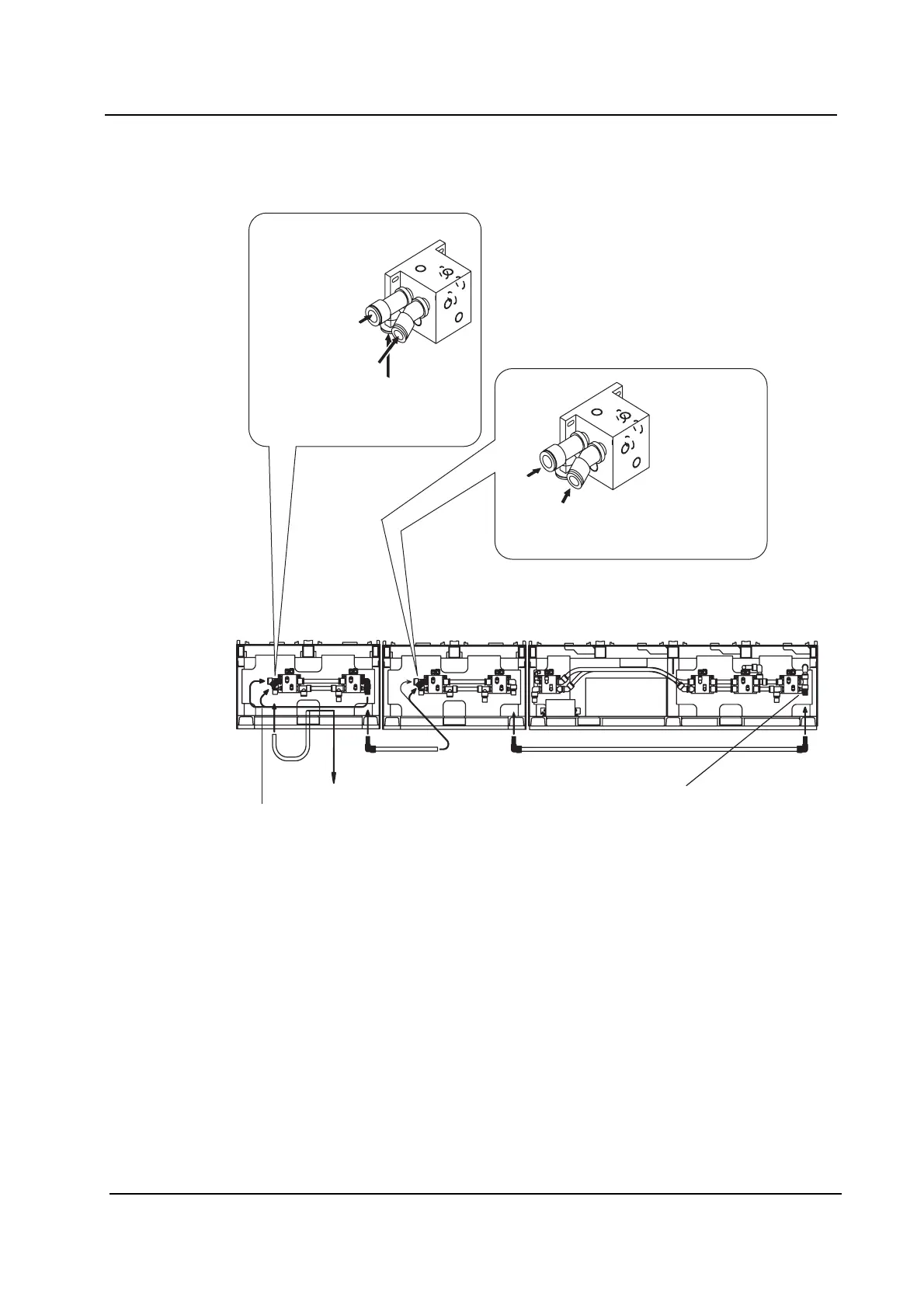

Pneumatic Connections
<For the Independent 4M Base (serial No. up to 294)>
T2 tubes (2)
T1 tubes (2)
Independent 4M base
Dependent
2M base
Dependent
2M base
Reuse the plugs.
Remove the plugs (2), and then connect the T1 tubes.
NXTSET030Ea
Remove the plugs (2) from these two
locations, and then connect the T2 tubes.
To vacuum pump box
Attach the used plugs to locations A.
Remove the plug from B, and then
connect the tube to the vacuum
pump box.
A
B
A
