3. Machine Set Up QD002-07
106 NXT Setup Manual
Pneumatic Connections
<For the Independent 4M Base (serial No. up to 294)>
<For the Independent 4M Base (serial No. 295 and later)>
Connecting the Bases
After attaching the signal cables and pneumatic connections, fasten neighboring bases
using the special bracket. Refer to section 3.8.13 "Fastening Extensions" for details.

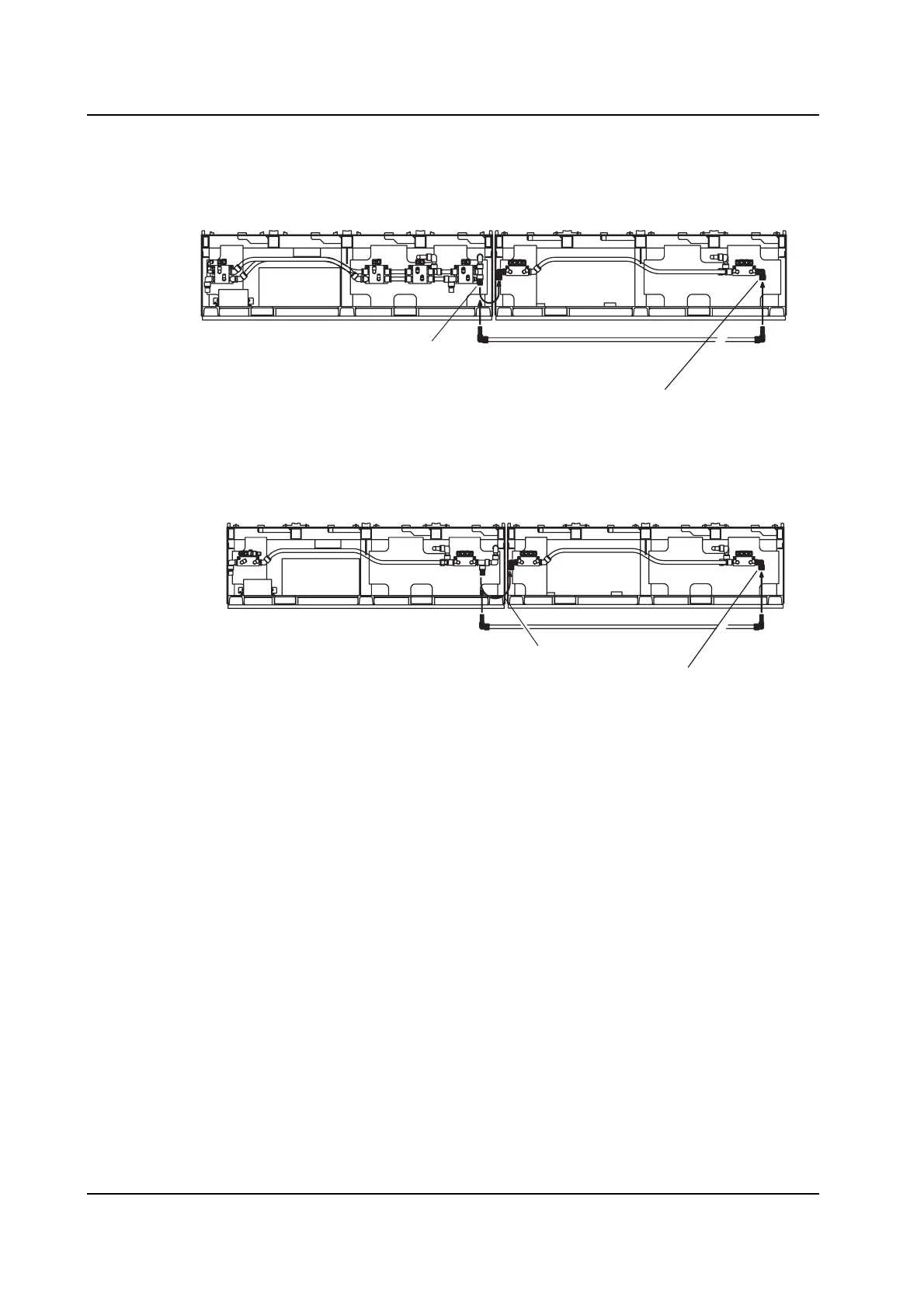

Reuse the plugs.
T1 tubes (2)
Remove the plugs (2), and then connect the T1 tubes.
Independent 4M base Dependent 4M base
NXTSET032Ea
Front view
Reuse the plugs.
T1 tubes (2)
Remove the plugs (2), and then connect the T1 tubes.
Independent 4M base Dependent 4M base
NXTSET033Ea
Front view
To Next Page
