3. Machine Set Up QD002-07
28 NXT Setup Manual

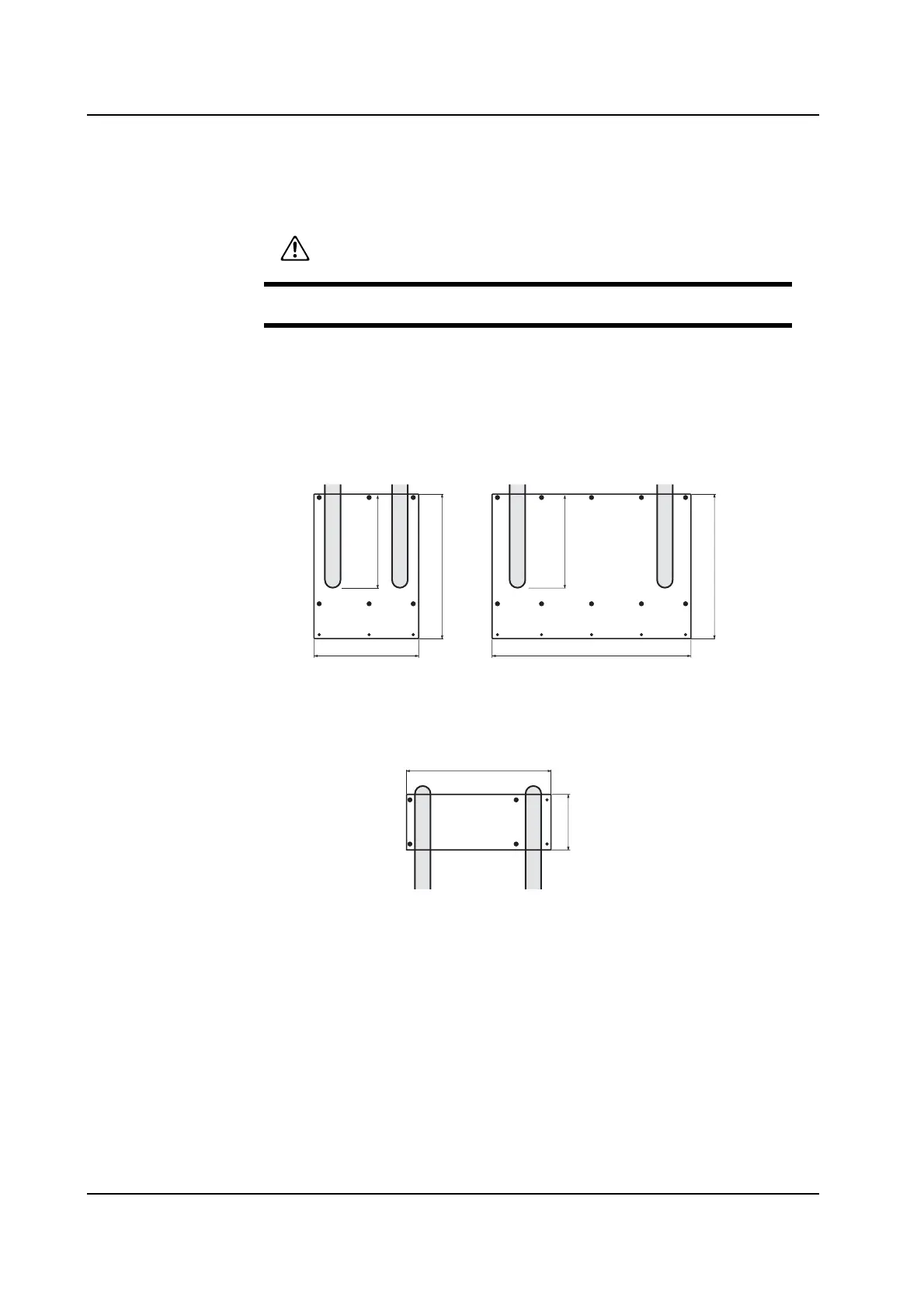

7. Insert the forklift so that its left and right forks are the same distance from the machine
center. Moreover, the space between the left and right forks should be set as wide as
possible.
Note:
6.The forklift should be operated in accordance with the manual provided by the forklift manufacturer.
7.To lift 8M or 4M bases insert the forklift 1100 mm or more in from the rear. For 2M bases, insert the forklift
from the side so the forklift arms extend under the base through to the opposite side.
8. Using the forklift, lift the machine to a height of 30 cm.
9. Transport the machine by forklift to its new location, then lower the machine slowly onto
the leveling sheets or leveling blocks.
DANGER
Do not attempt to perform any tasks beneath the elevated machine.
1900 mm
2590 mm
1900 mm
1290 mm
8M base4M base
NXTSET010Ec
1900 mm
715 mm
2M base
Front side of the machine Front side of the machine
Side of the machine
1100 mm
or more
1100 mm
or more
