QD002-07 3. Machine Set Up
NXT Setup Manual 27
4. When moving an already existing machine, remove all tape feeders, air hoses, and
disconnect any external wiring to the machine.
5. When moving an already existing machine, use the machine brackets (red) to secure
main components. See the illustrations shown in 3.2 "Removing Fixing Brackets".
Note: If there are no machine brackets available, use rope, etc., to secure the various parts of the machine to
avoid damaging them.
6. Before moving M6S modules, after ensuring that the linear motor shaft is room
temperature, attach the linear motor shaft protective covers. Refer to the illustration in
"3.3 Removing the Linear Motor Shaft Protective Covers" for reference.

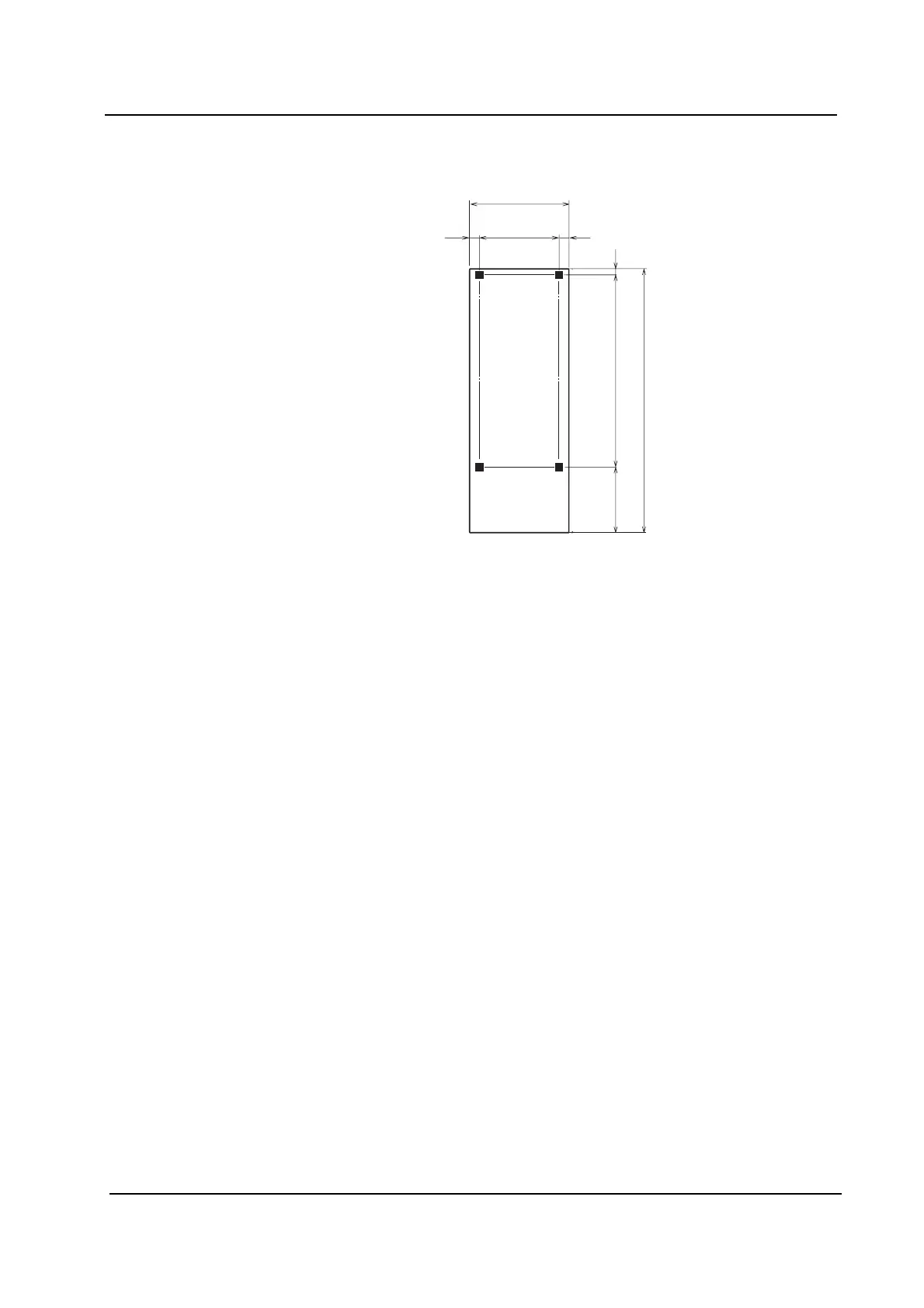

1384 43.5472.5
1900
Unit: mm
Front side of the machine
715
70
70
575
<2M Base>
NXTSET014E
To Next Page
