QD002-07 3. Machine Set Up
NXT Setup Manual 79

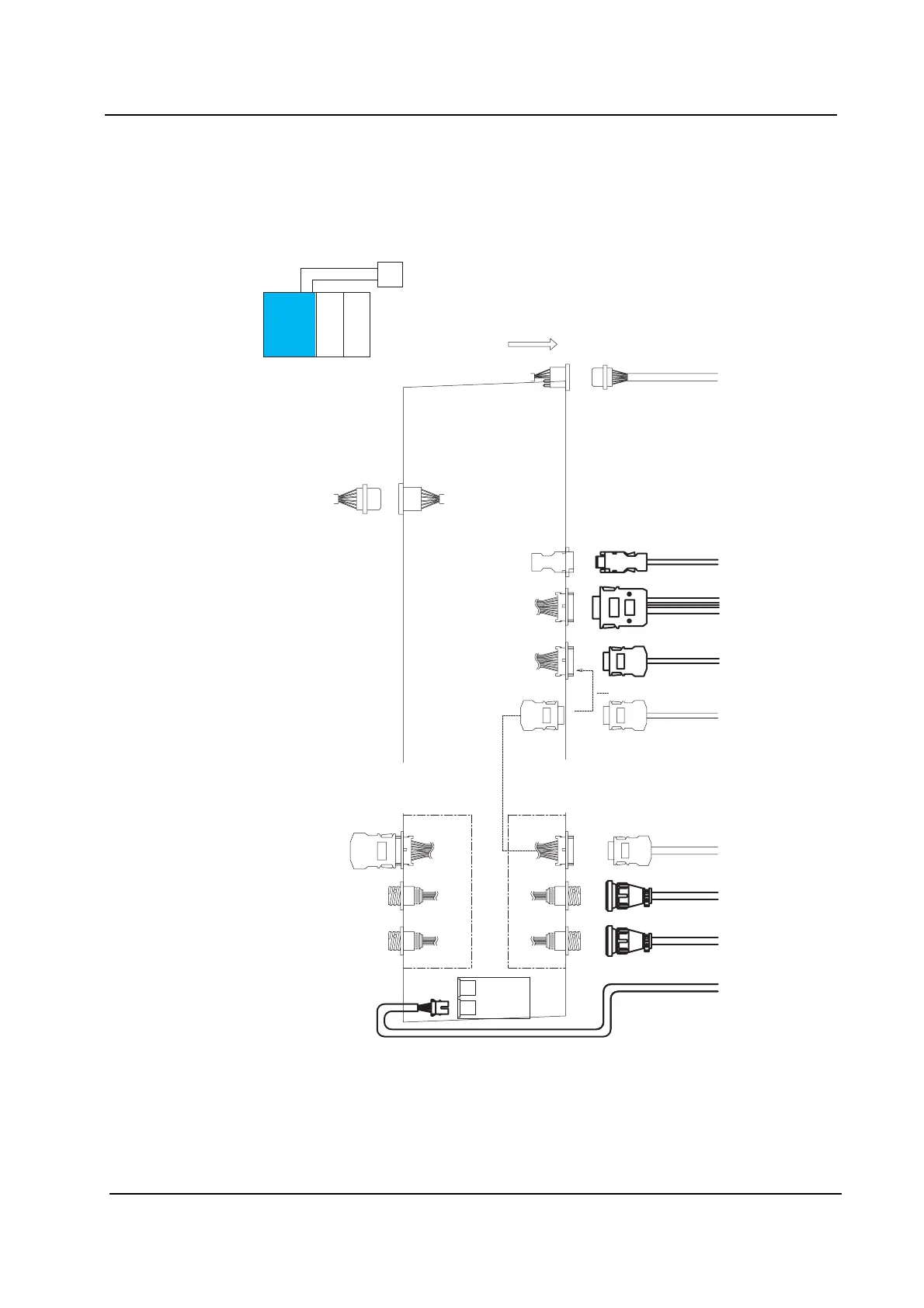

Signal Cable Connection Diagram
(Independent 4M Base - 2M Base - 2M Base)
Connect each signal cable as shown in the following diagram.
Note: Two sets of base connection harnesses AJ110** are shown in bold.
4M base
CN28A
CN27A
Left side
moudle cover
RH0527*
BRCN1
RH0558*
BRCN2
BRCN2
RH0559*
BRCN3
(Fixed)
RH0560*
Connected when the base
is used in the last stage.
BRCN3
(Cable)
BRCN3
BRCN3
RH1163*
Joint harness
Disconnect RH0070*, then
connect RH0583*.
Connected when
shipped RH0067*
CN-M1
CN-M2
CN-M2
CN-M1
RH0583*
Lane 2-F
Lane 2-R
RH1186*
Lane 1-F
Lane 1-R
RH1186*
Circuit breaker bracket 2
CN-1
RH0562*
CN-2
Previous stage side
Next stage side
RH2012*
4M Base - 2M Base - 2M Base Harness Connection Diagram (1/4)
NXTSET199Ea
A
B
C
D
E
F
G
H
I
Panel loading
signal bracket
(Previous stage)
Panel loading
signal bracket
(Next stage)
Panel flow
