3. Machine Set Up QD002-07
82 NXT Setup Manual
Do not pass the harness (RH2141*, RH2142*, RH2143*) between the 4M base and the
vacuum pump box through the interior of the base. The harness should be installed along
the outside of the base.
4M base
Vacuum pump box
M141A
M141
Thermo fuse
Inverter bracket
MS3CN3
Inverter bracket
MS3CN1
RH2143*
RH2141*
RH2142*
Thermo fuse
Inverter bracket
MS1CN3
Inverter bracket
MS1CN1
Control box
BCBCN18
Interface board
CN6
NXTSET202E

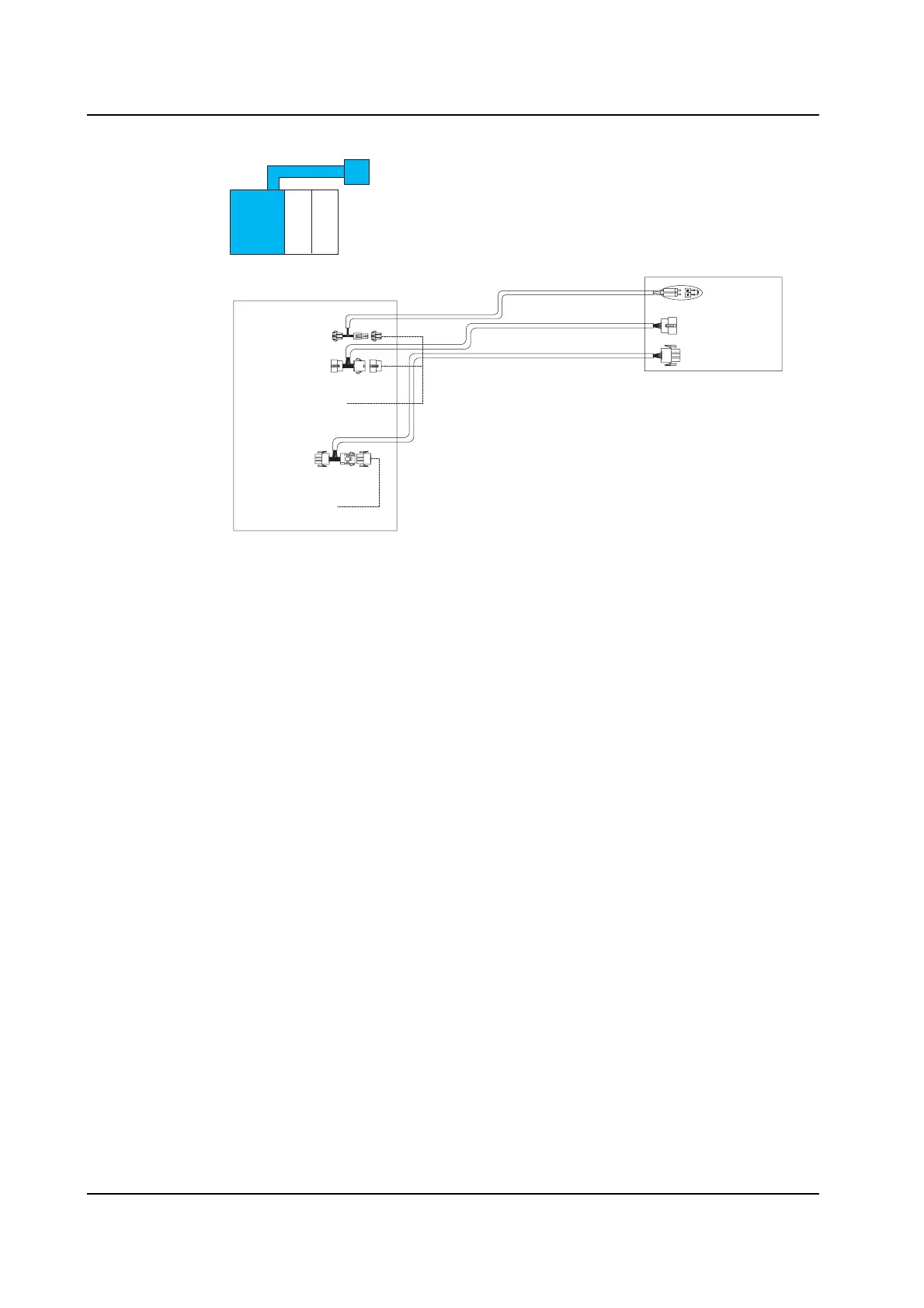

4M Base - 2M Base - 2M Base Harness Connection Diagram (2/4)
