QD002-07 3. Machine Set Up
NXT Setup Manual 83

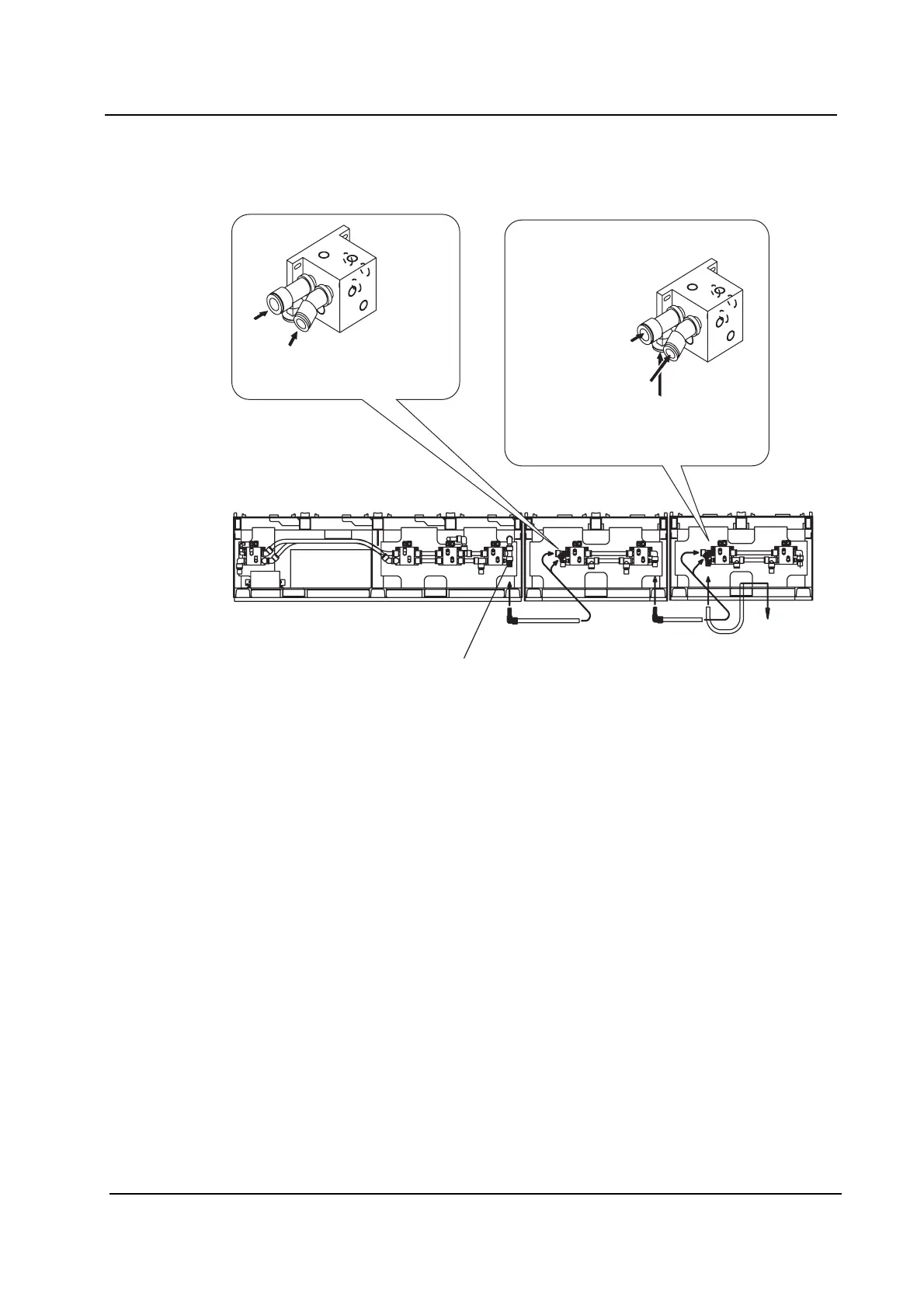

Pneumatic Connections
<For the Independent 4M Base (serial No. up to 294)>
Independent 4M base Dependent 2M base Dpendent 2M base
Front view
NXTSET026Ea
Remove the two plugs and attach the T2 tube elbow connector.
Remove the plugs from these
two locations, and then connect
the T2 tubes.
T2 tubes (2)
T2 tubes (2)
To vacuum
pump box
Remove the pluges from locations A, and
then connect the T2 tube.
Remove the plug from location B, and
then connect the tube to the vacuum
pump box.
A
B
A
To Next Page
