FujiFilm NXT - Using Two 2 M Bases and an Independent 4 M Base (2)

3. Machine Set Up QD002-07
84 NXT Setup Manual
<For the Independent 4M Base (serial No. 295 and later)>
Connecting the Bases
After attaching the signal cables and pneumatic connections, fasten neighboring bases
using the special bracket. Refer to section 3.8.13 "Fastening Extensions" for details.

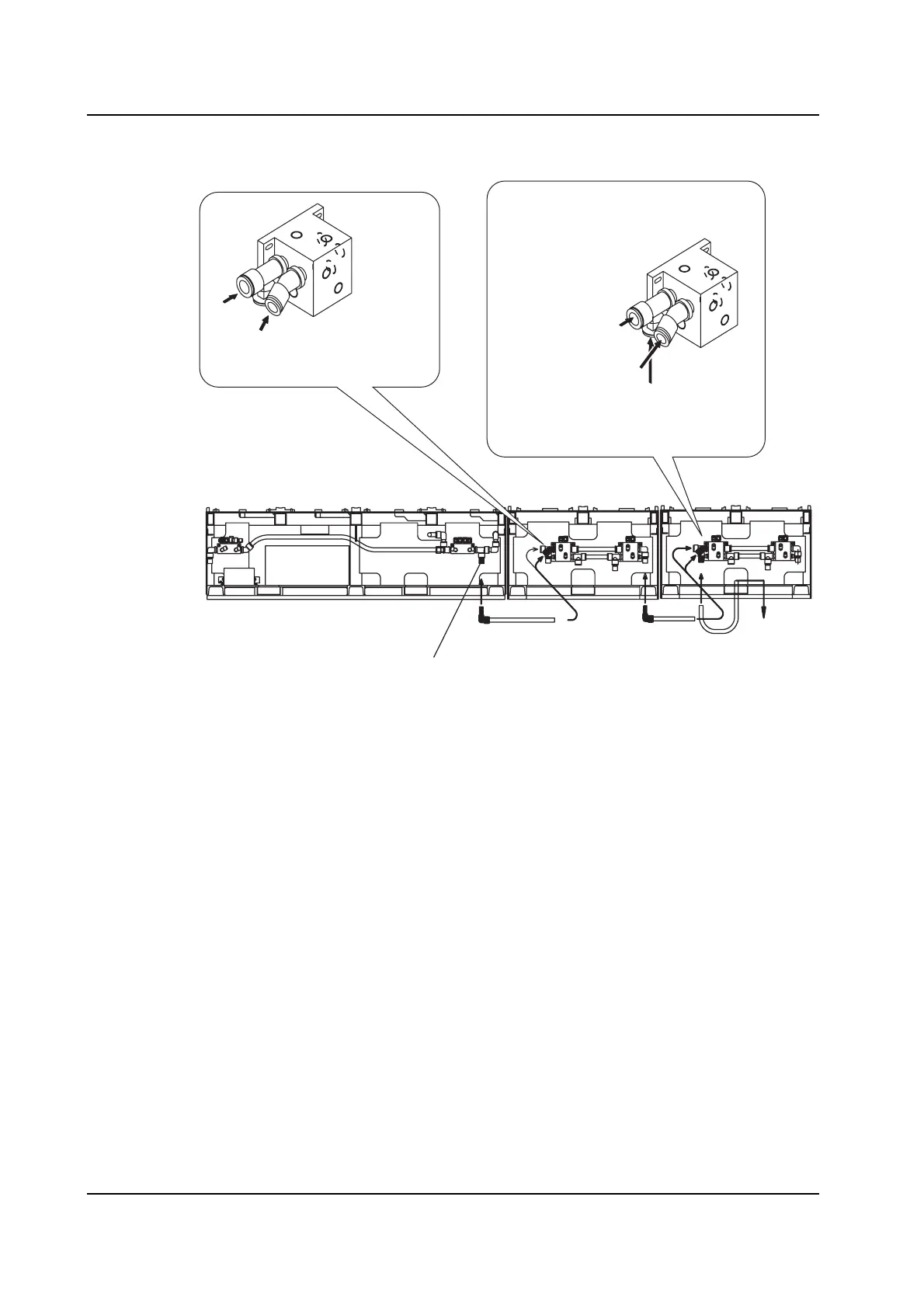

NXTSET027Ea
Independent 4M base Dependent 2M base Dpendent 2M base
Front view
Remove the two plugs and attach the T2 tube elbow connector.
T2 tubes (2)T2 tubes (2)
To vacuum
pump box
#
$
#
Remove the plugs from these
two locations, and then connect
the T2 tubes.
Remove the pluges from locations A, and
then connect the T2 tube.
Remove the plug from location B, and
then connect
the tube to the vacuum
pump box.
