QD002-07 3. Machine Set Up
NXT Setup Manual 91
<For the Independent 4M Base (serial No. 295 and later)>

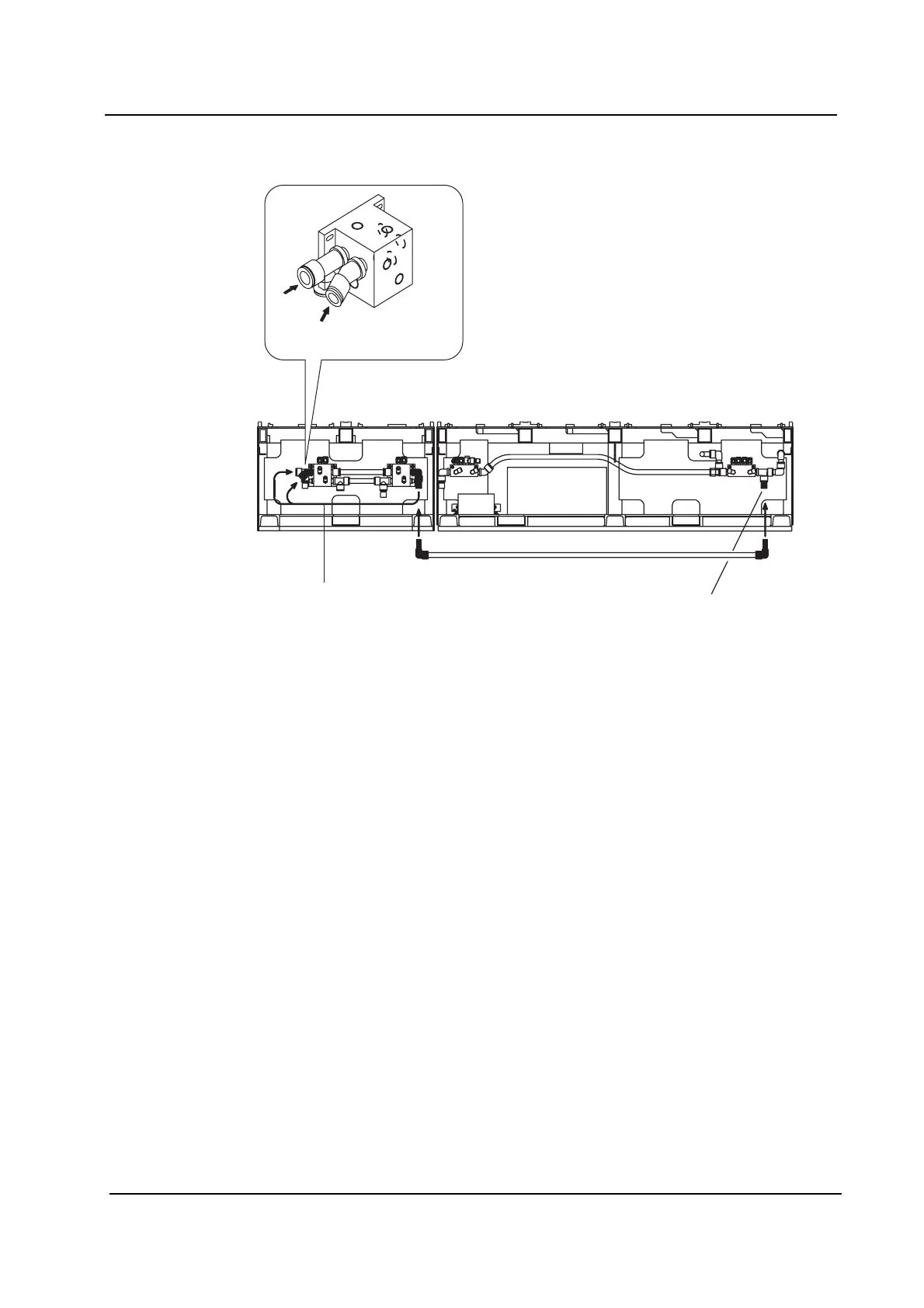

Connecting the Bases
After attaching the signal cables and pneumatic connections, fasten neighboring bases
using the special bracket. Refer to section 3.8.13 "Fastening Extensions" for details.
T1 tubes (2)
Independent 4M base
Dependent
2M base
Reuse the plugs.
Attach the used plugs.
Remove the plugs (2), and
then connect the T1 tubes.
NXTSET029Ea
To Next Page
