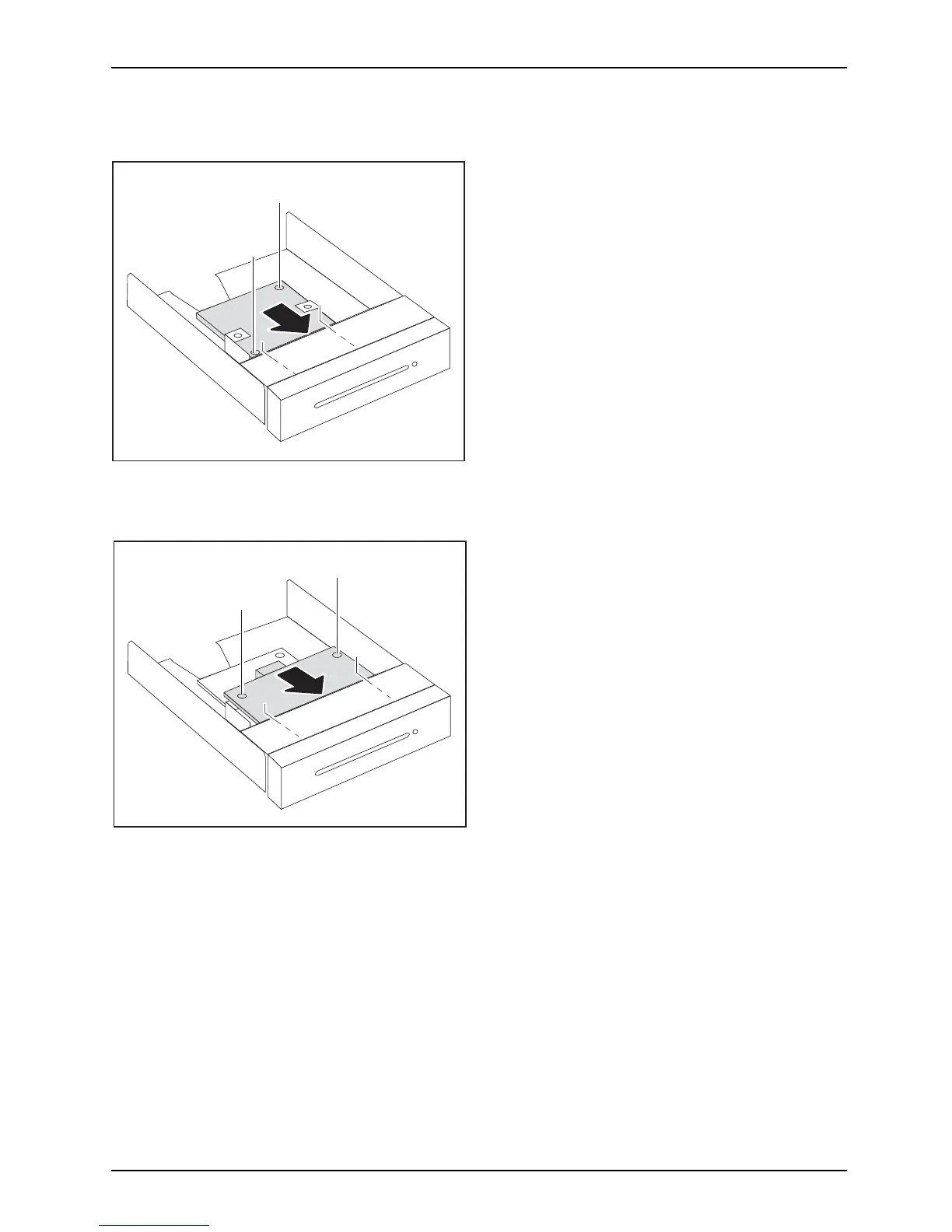

Screwing the WLAN module onto the module holder
2
a
a
1
2
► Push the WLAN module - with the
component side facing downwards - in
the direction of the a rrow (1) into the
guide on the module holder (a).
► Fa sten the W LAN mod ule with the
screws (2).
Screwing the SmartCard reader onto the mo dule holder
2
2
a
a
1
► Push the SmartCard reader - with the
component side facing downwards - into
the guide on the module holder (a) in
the directio n of the arrow ( 1).
► Sec ure the Smar tCard reader with
the screws (2).
