Ports on th e device
PortsExternaldevicesDevice

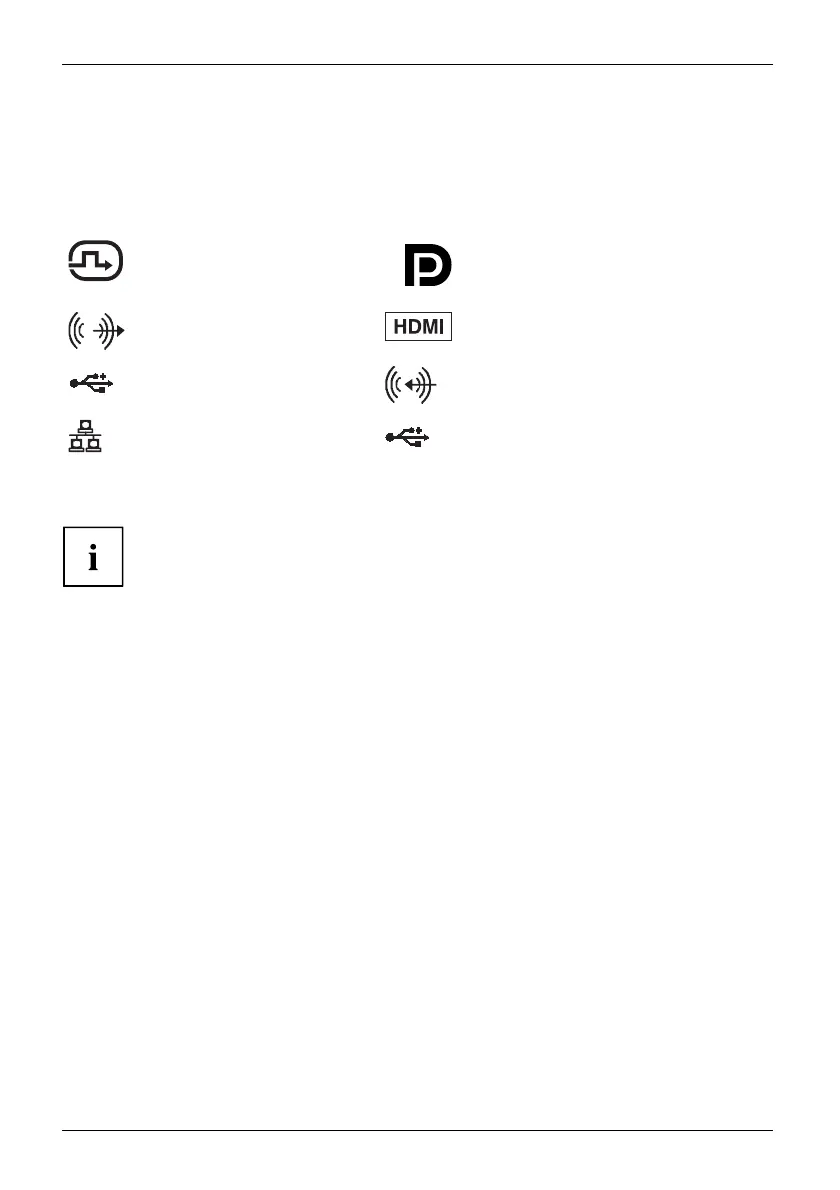

The ports are located on the front and rear side of the device. The ports available on
your device depend on the configuration level you have selected. The standard ports are
marked with the symbols shown below (or similar). Detailed information on the location
of the ports is provided in the manual for the mainboard.
DVI-I monitor port, white
Monitorport
+
+
DisplayPort (device-dependent)
Audio output (Line Out), light
green
AudiooutputLineout
HDMI port (device-dependent)
USB 2.0 - Universal Serial
Bus, black (device-dependent)
UniversalSerialBus
Audio input (Line in)
Audioinput
LAN port
LANport
USB 3.0 - Universal Serial Bus, blue
(device-dependent)
No
symbol
MultiCard
Some of the connected devices require special softw are (e.g. drivers) (refer to the
documentation for the connected device and opera ting system).
Connecting a monitor
► Follow the instructions contained in the mon itor manual to prepare the
monitor for use (e.g. connect the cables).
Monitor
► Plug the data cable into the desired monitor port of the device.
► Plug the monitor power cable into a grounded mains outlet.
