System
expansions
Removing
and
installing
the
har
dd
i
s
k

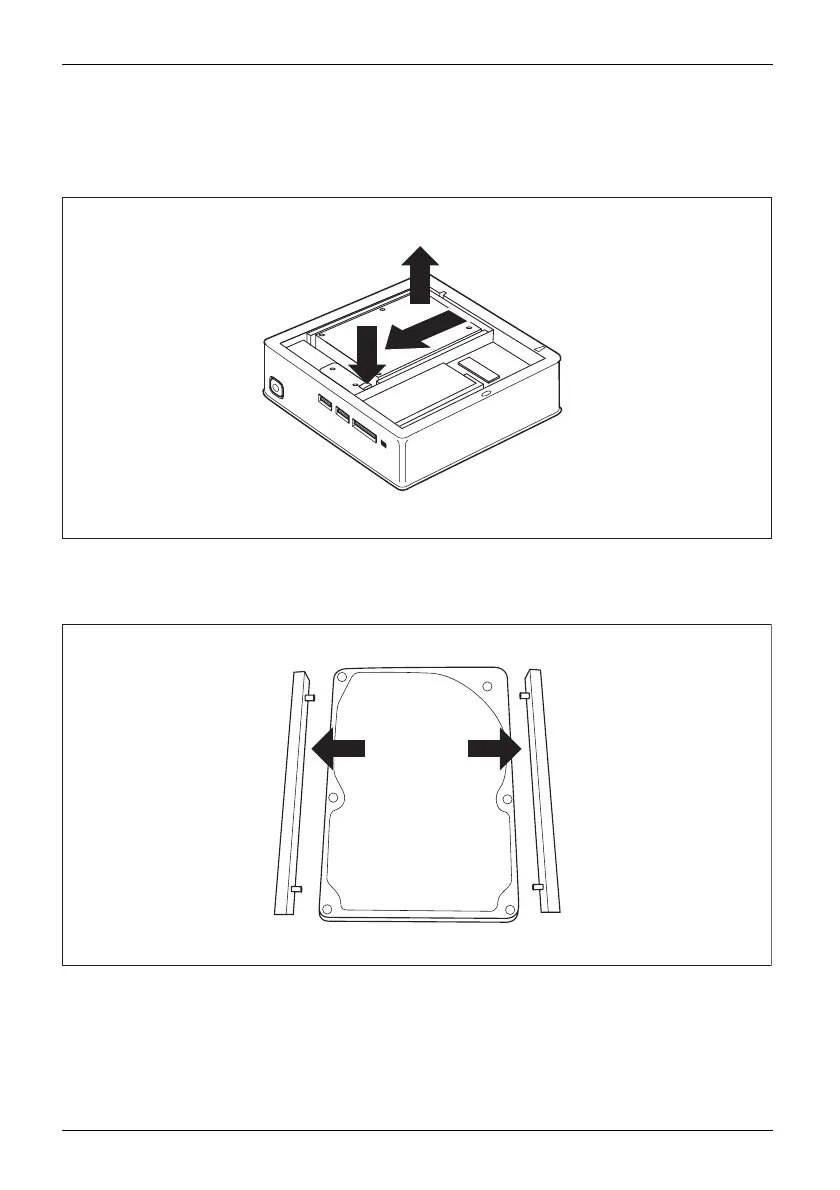

Removing
a
hard
disk
2
3
1
►
T
o
release
the
hard
disk,
keep
the
clip
pressed
down
(1).
►
Slide
t
he
hard
disk
in
the
direction
of
the
arrow
(2).
►
Lift
the
hard
disk
out
of
the
device
(3).
►
Remove
the
guide
rails
from
the
hard
disk.
48
Fujitsu
T
echnology
Solutions
51
53
