Fujitsu Primergy RX300 S2 Options Guide

40 Options Guide RX300 S2
Replacing the processor Processors

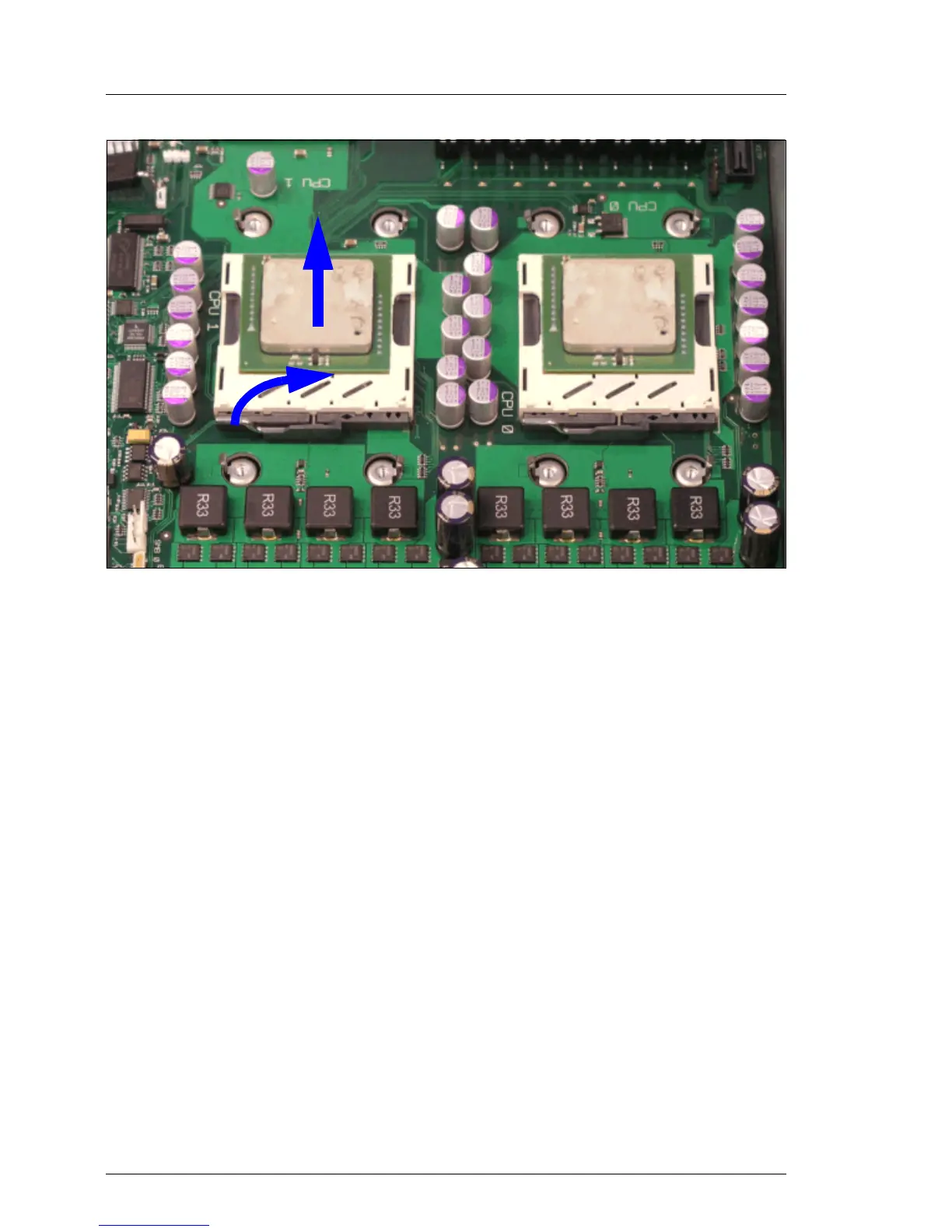

Figure 20: Removing an installed processor
Ê Release the socket lifter by pressing it sideways and pull it upward as far as
it will go (1).
Ê Lift the installed processor carefully out of the socket (2).
2
1

Fujitsu Primergy RX300 S2 Specifications

General

Processor Sockets	2
Chipset	Intel 5000P
Network	2 x Gigabit Ethernet
Form Factor	2U Rackmount
Processor	Intel Xeon 5000/5100/5300 series
Storage	SAS or SATA HDD 2.5"/3.5"
RAID Support	Optional RAID controller
Operating System Support	Windows Server, Linux
Power Supply	Redundant power supply optional
