Fujitsu Primergy RX300 S2 Options Guide

RX300 S2 Options Guide 41
Processors Replacing the processor

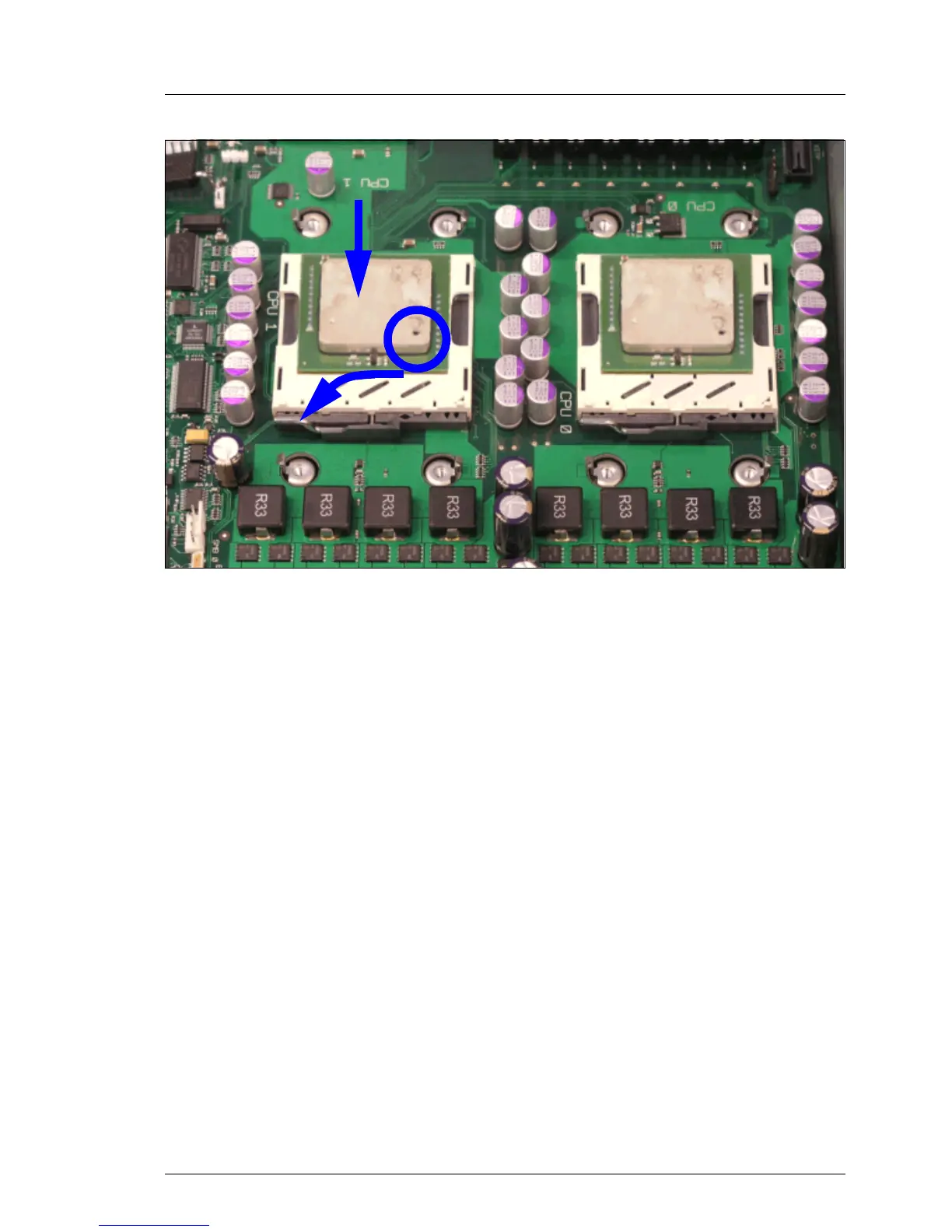

Figure 21: Inserting a new processor
Ê Position the new processor over the socket and then carefully press it into
the socket (1).
V CAUTION!
The processor can only be installed in one particular direction. Note
the marking on one of the corners (2). To avoid damaging the pins or
the processor, do not force it into the socket.
Ê Lock the processor in place in the socket by returning the socket lifter to its
original position (3).
Ê Remove the protective cover on the underside of the heat sink.Do not touche
the pad.
Ê Place the heat sink on the processor socket (see page 38).
Ê Fasten the heat sink by tightening the four screws in a crossover pattern.
Ê Reinstall the air duct over the main memory and the processors (see
“Inserting air duct” on page 31).
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter „Completion“ on page 107.
1
2
3

Fujitsu Primergy RX300 S2 Specifications

General

Processor Sockets	2
Chipset	Intel 5000P
Network	2 x Gigabit Ethernet
Form Factor	2U Rackmount
Processor	Intel Xeon 5000/5100/5300 series
Storage	SAS or SATA HDD 2.5"/3.5"
RAID Support	Optional RAID controller
Operating System Support	Windows Server, Linux
Power Supply	Redundant power supply optional
