RX300 S2 Options Guide 47
Accessible drives Installing a FD drive

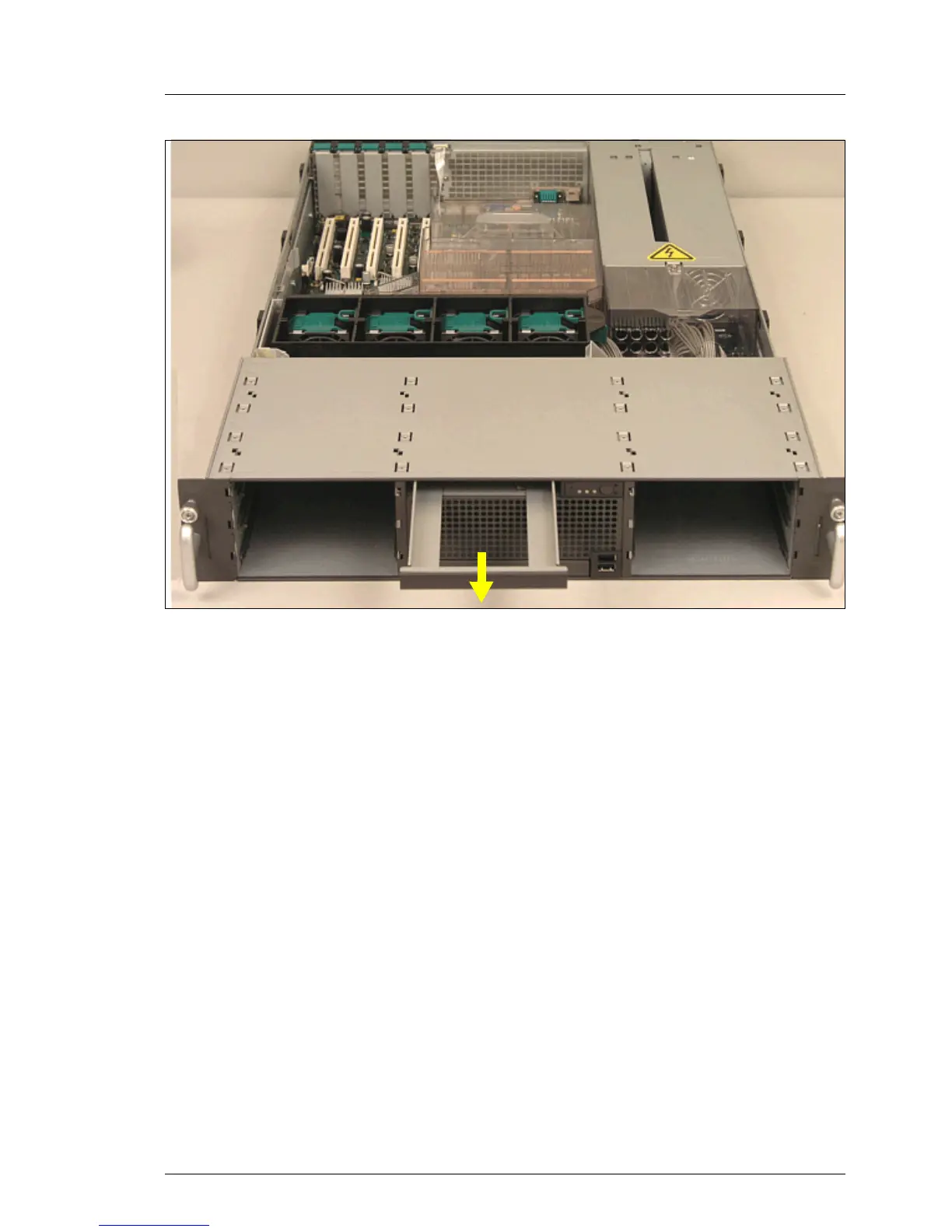

Figure 25: Removing dummy module
Ê Pull the FD drive dummy module out to the front side.
V CAUTION!
Keep the dummy module for future use. If you remove the FD drive
again and do not replace it with a new one, the dummy module must
be reinstalled to comply with EMC regulations and to satisfy cooling
requirements and fire protection measures.
