48 Options Guide RX300 S2
Installing a FD drive Accessible drives
Installing FD drive

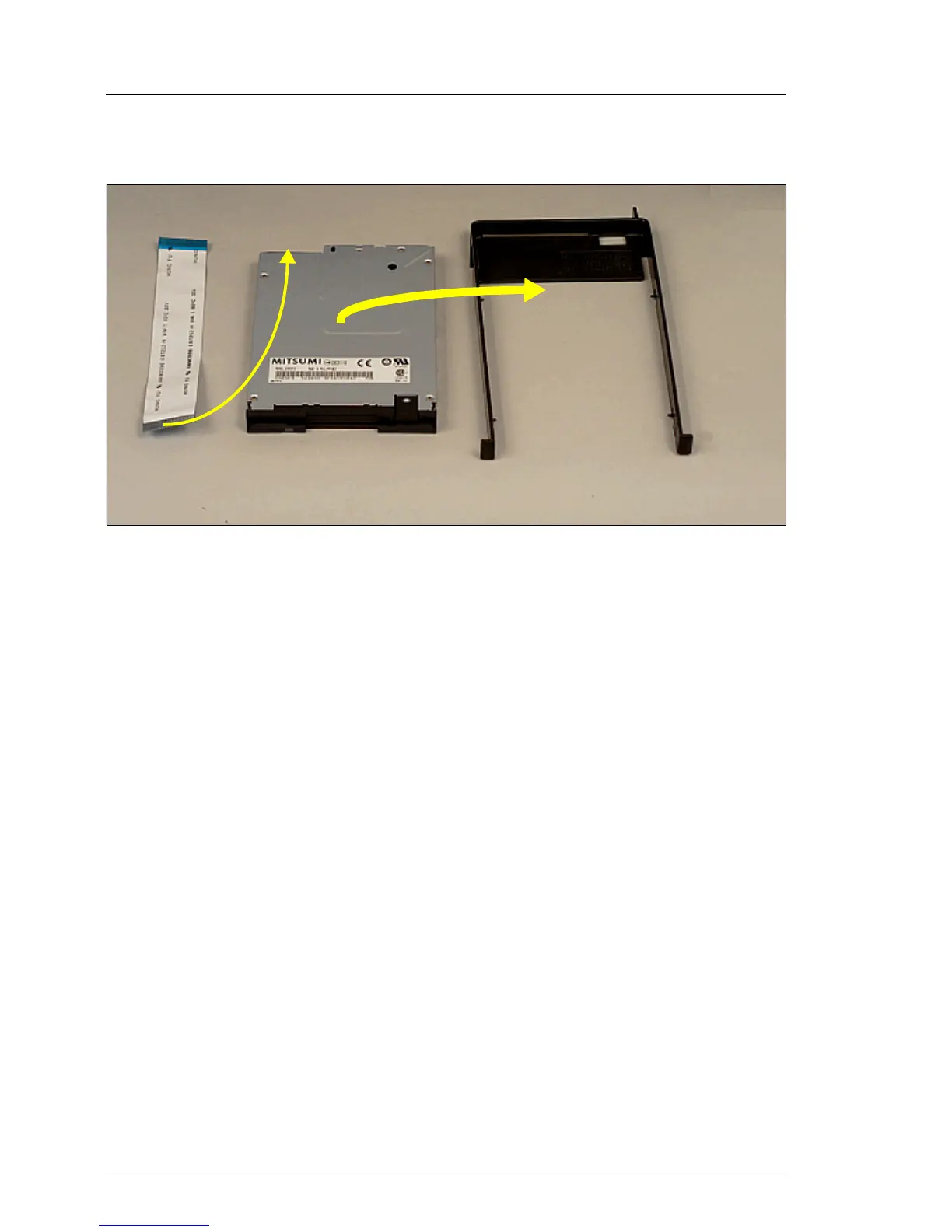

Figure 26: Insert FD drive into the mounting frame.
I The mouning frame and the cable is deliverd in the accessory pack with
the PRIMERGY RX300 S2.
Ê Insert the FD drive into the mounting frame. Regard the plastic pins. They fix
the dive in the frame.
Ê Connect the cable.
