Fujitsu Primergy RX300 S2 - Page 49

RX300 S2 Options Guide 49
Accessible drives Installing a FD drive

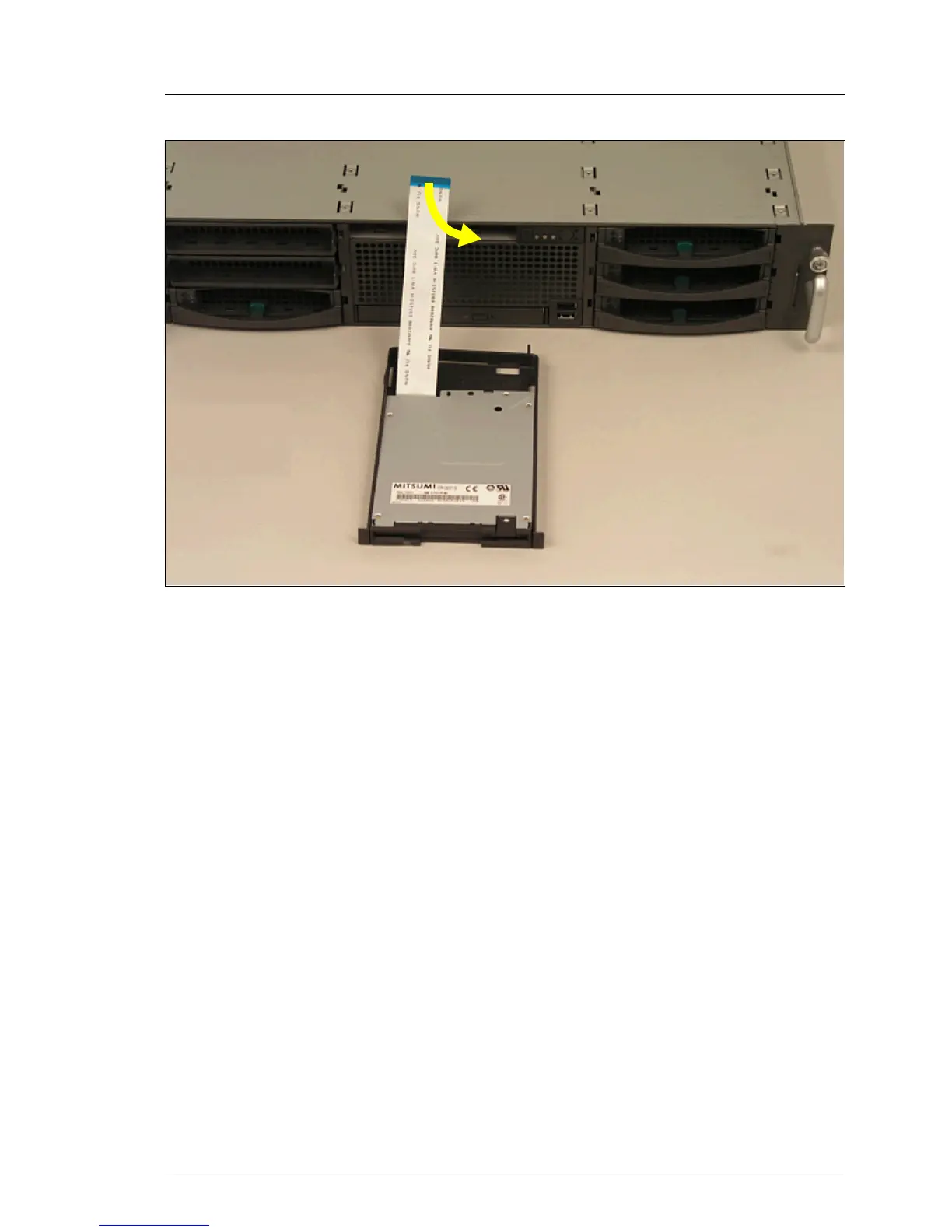

Figure 27: Inserting FD drive module
Ê Thread the flat cable in the bay.
Ê Push the FD drive module into the bay, until it locks.
