68 Options Guide RX300 S2
Installing the PCI controller in the riser card PCI slots

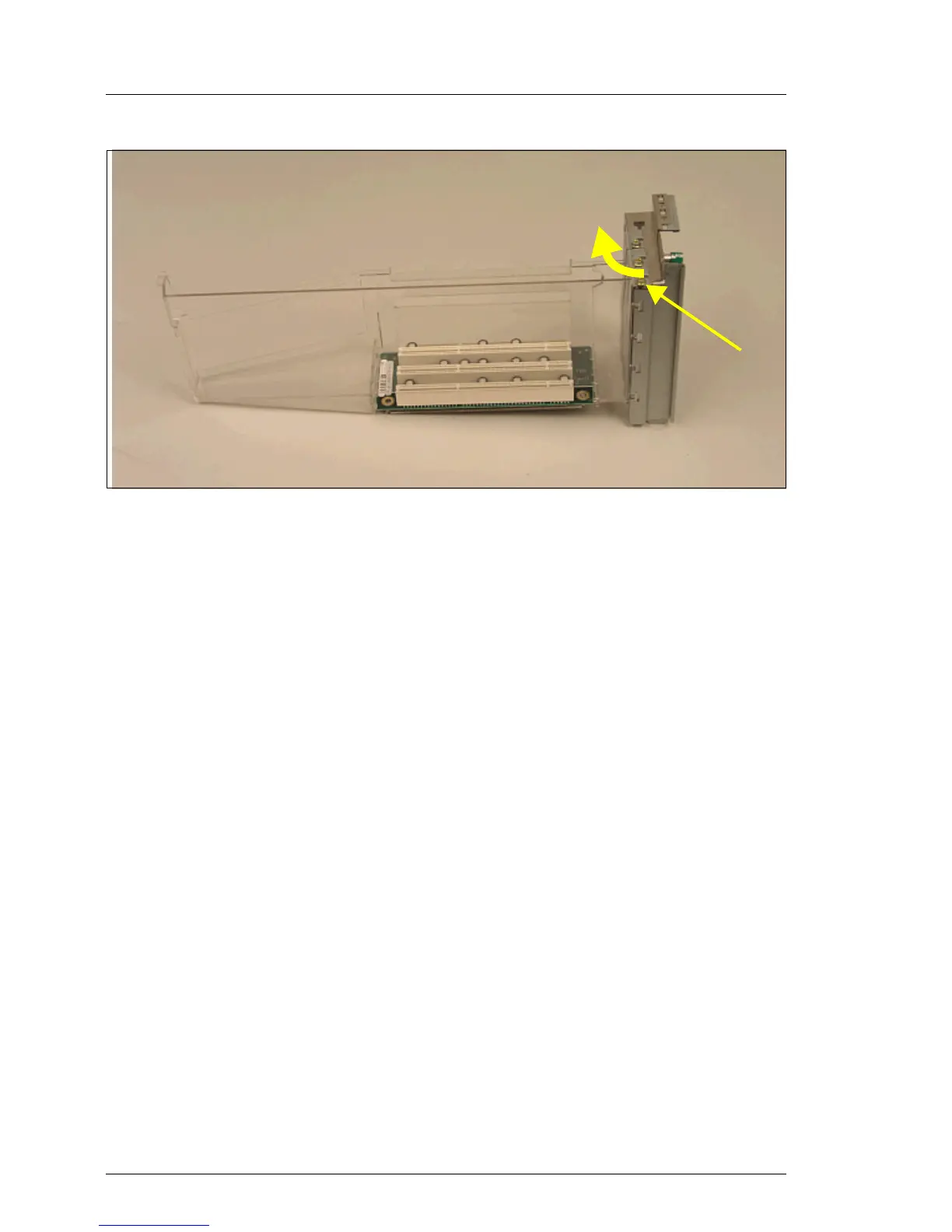

Figure 45: Installing the controller
Ê Remove the screw and the slot cover of the associated connector
I To equip slot 8 with a full-length PCI controller it is necessary to
remove slot cover of slot 7 too.
