Fujitsu Primergy RX300 S2 Options Guide

RX300 S2 Options Guide 69
PCI slots Installing the PCI controller in the riser card

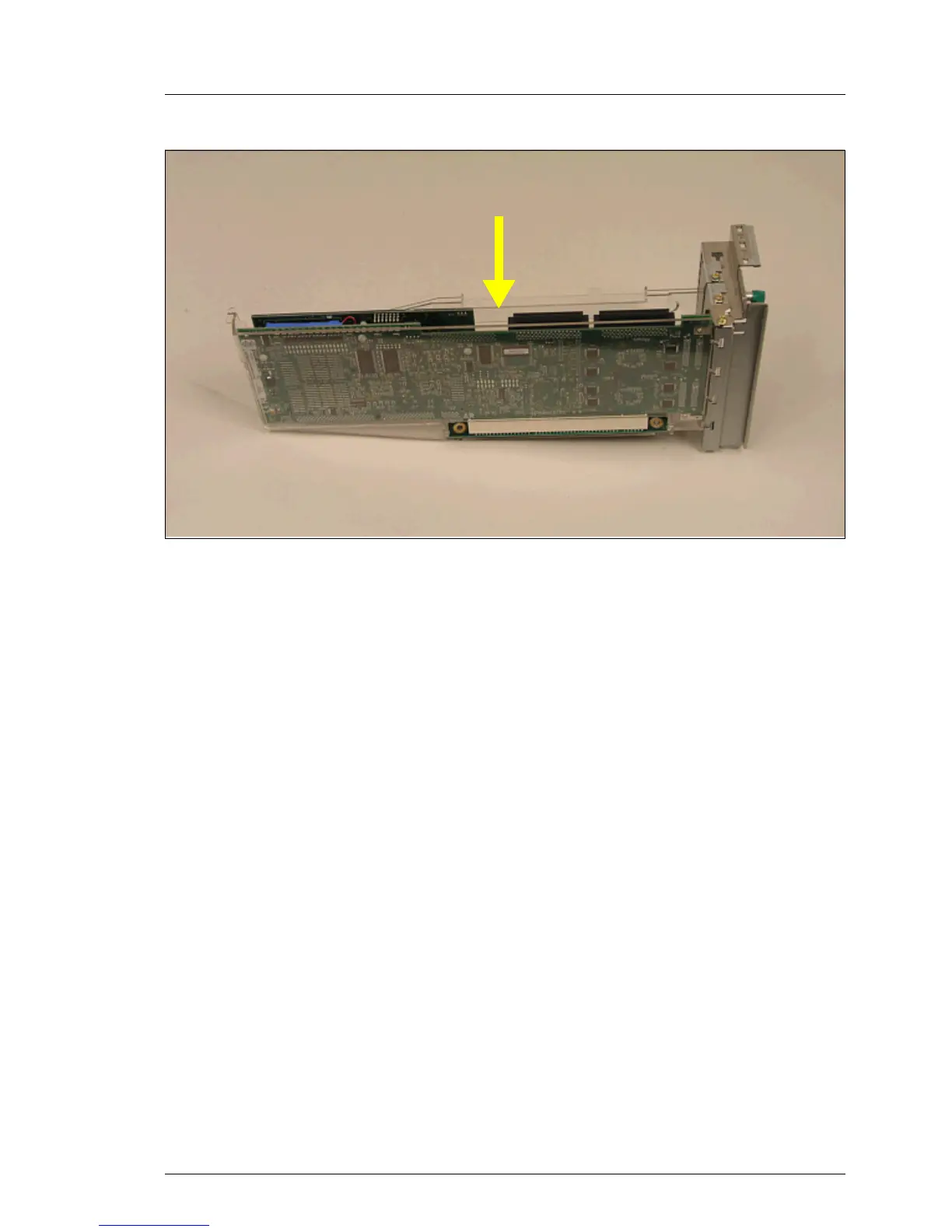

Figure 46: Installing controller
Ê Insert the controller into the PCI slot and push it down carefully.
Ê Fix the slot cover/s with the screw/s.
Ê If necessary connect the cables to the controller or other components.
Ê Insert the riser card and be careful with the cables.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter „Completion“ on page 107.

Fujitsu Primergy RX300 S2 Specifications

General

Processor Sockets	2
Chipset	Intel 5000P
Network	2 x Gigabit Ethernet
Form Factor	2U Rackmount
Processor	Intel Xeon 5000/5100/5300 series
Storage	SAS or SATA HDD 2.5"/3.5"
RAID Support	Optional RAID controller
Operating System Support	Windows Server, Linux
Power Supply	Redundant power supply optional
