Fujitsu Primergy RX300 S2 Options Guide

RX300 S2 Options Guide 81
External SCSI interface Installing the external SCSI interface

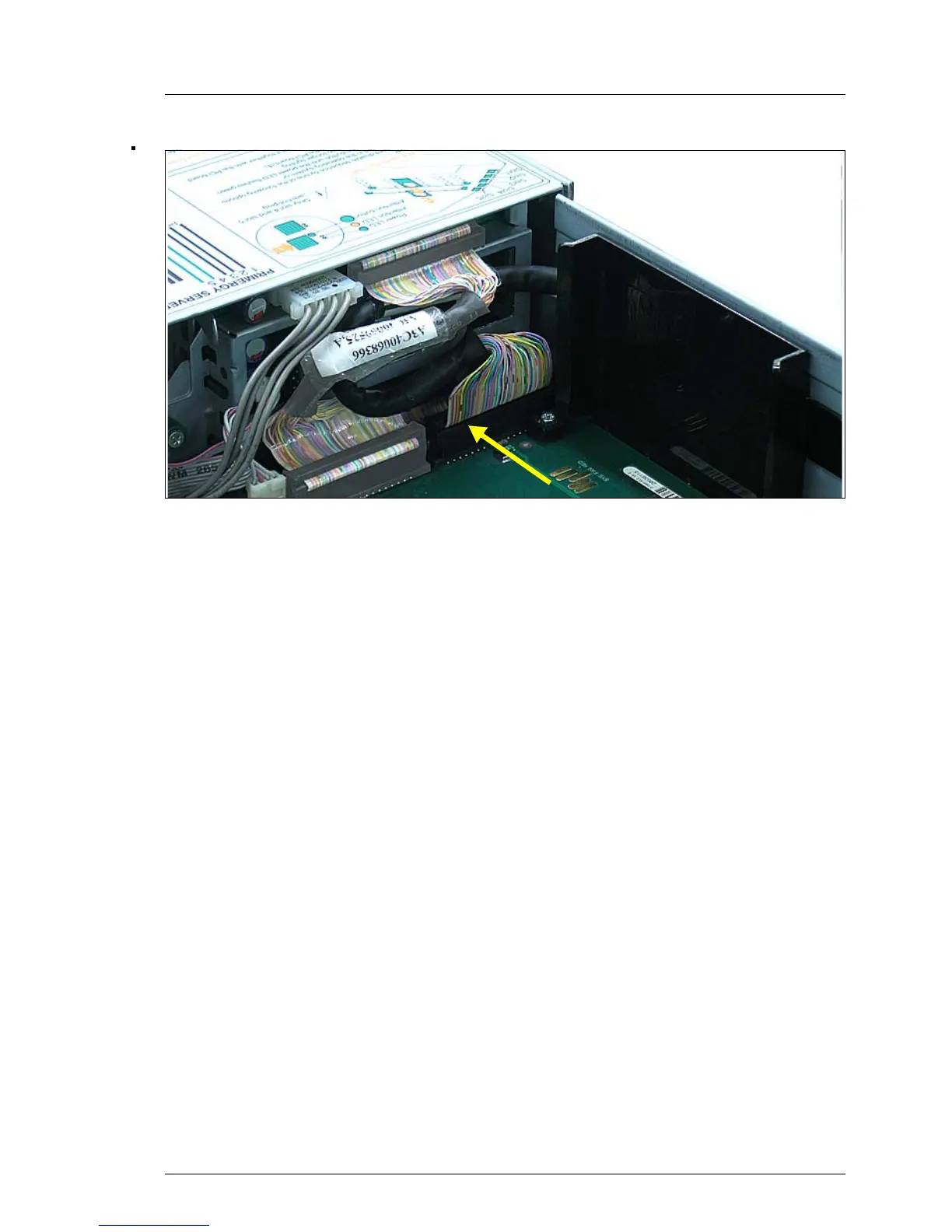

Figure 58: Connecting the SCSI cable to the system board
Ê Connect the SCSI cable to the connector SCSI B on the system board (see
arrow).
Route the cable as shown in the figure.
V CAUTION!
Make sure that the cable is not kinked and not under stress.
Ê Install the fan box and the fan box air duct.
Ê Push the fans back.
Ê If a ROMB upgrade kit is incorporated in the server, install again the cache
module.
V CAUTION!
Do not press on the battery (BBU) when inserting the cache module.
This may damage the socket. Always hold the cache module by their
edges.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter „Completion“ on page 107.

Fujitsu Primergy RX300 S2 Specifications

General

Processor Sockets	2
Chipset	Intel 5000P
Network	2 x Gigabit Ethernet
Form Factor	2U Rackmount
Processor	Intel Xeon 5000/5100/5300 series
Storage	SAS or SATA HDD 2.5"/3.5"
RAID Support	Optional RAID controller
Operating System Support	Windows Server, Linux
Power Supply	Redundant power supply optional
