82 Options Guide RX300 S2
Installing the external SCSI interface External SCSI interface
External SCSI interface in the riser card

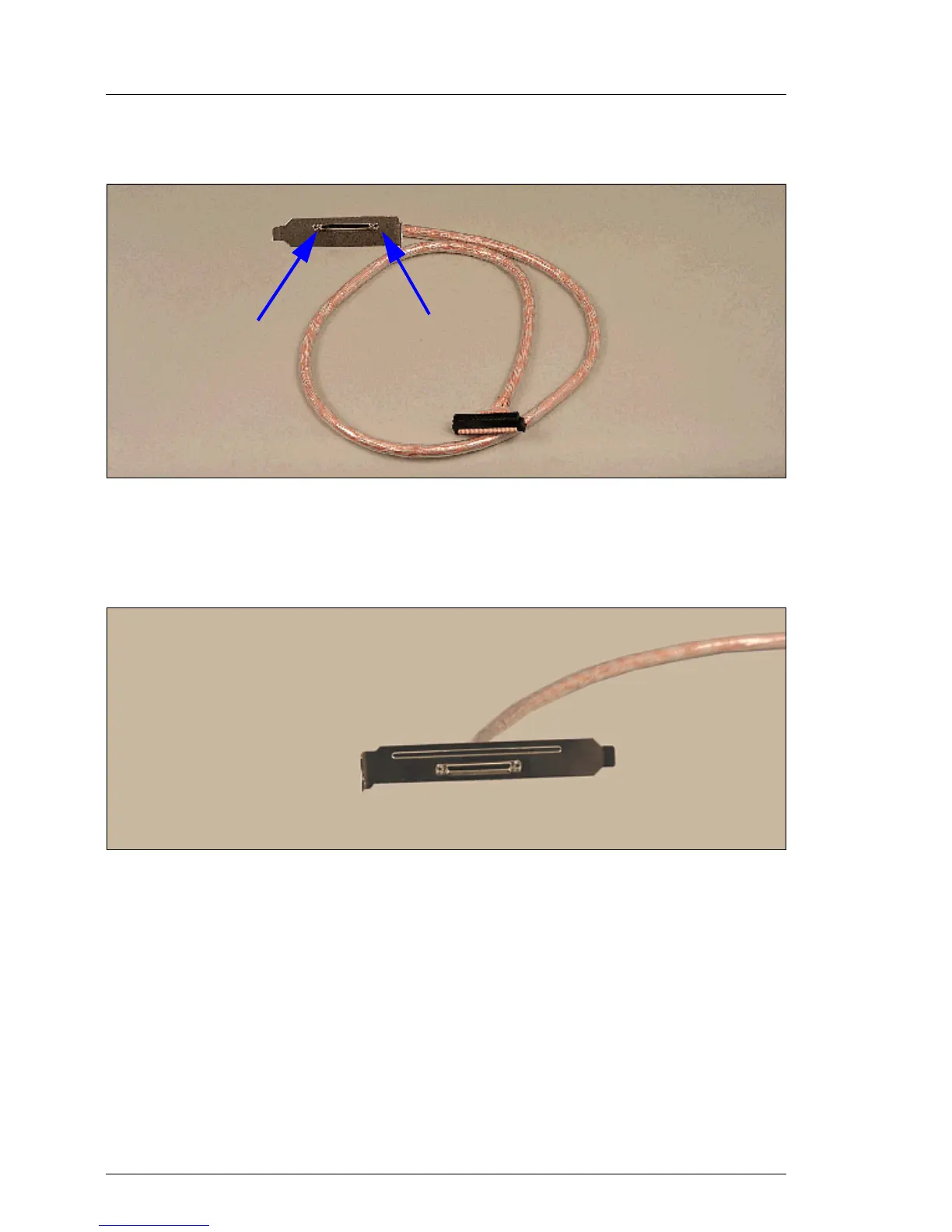

Figure 59: Cable for external SCSI interface (with low profile slot cover)
Ê Remove the two screws.
Ê Remove the low-profile slot cover from the SCSI-connector.
Figure 60: External. SCSI Interface with standard slot cover
Ê Insert the SCSI connector to the slot cover.
