RX300 S2 Options Guide 85
External SCSI interface Installing the external SCSI interface

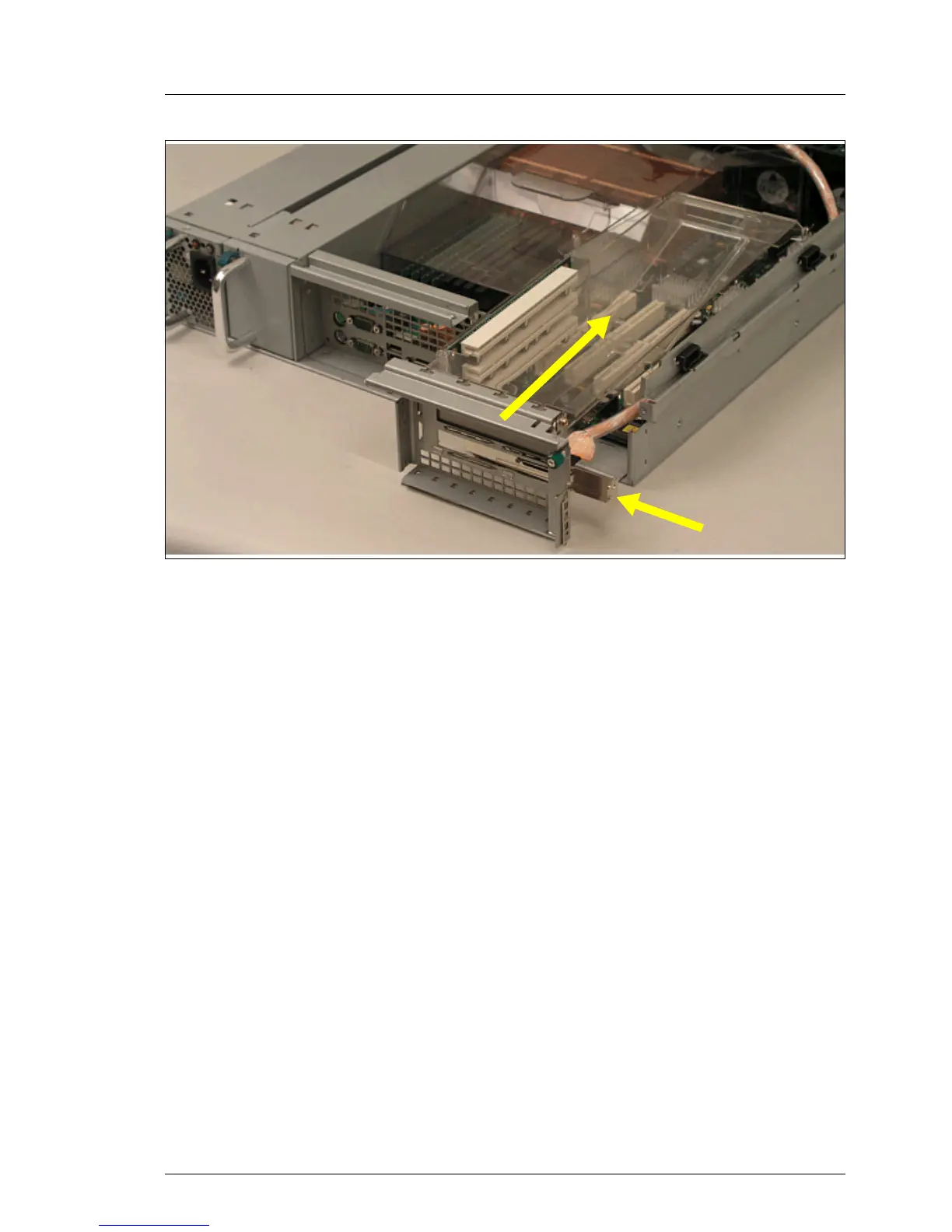

Figure 65: Inserting riser card
Ê Lay the riser card into the server as shown above.
Ê Push the SCSI slot cover into Slot 6.
Ê Fix the slot cover with the screw.
Ê Insert the riser card completely.
Ê Fix the riser card with the two knurled screws.
