84 Options Guide RX300 S2
Installing the external SCSI interface External SCSI interface

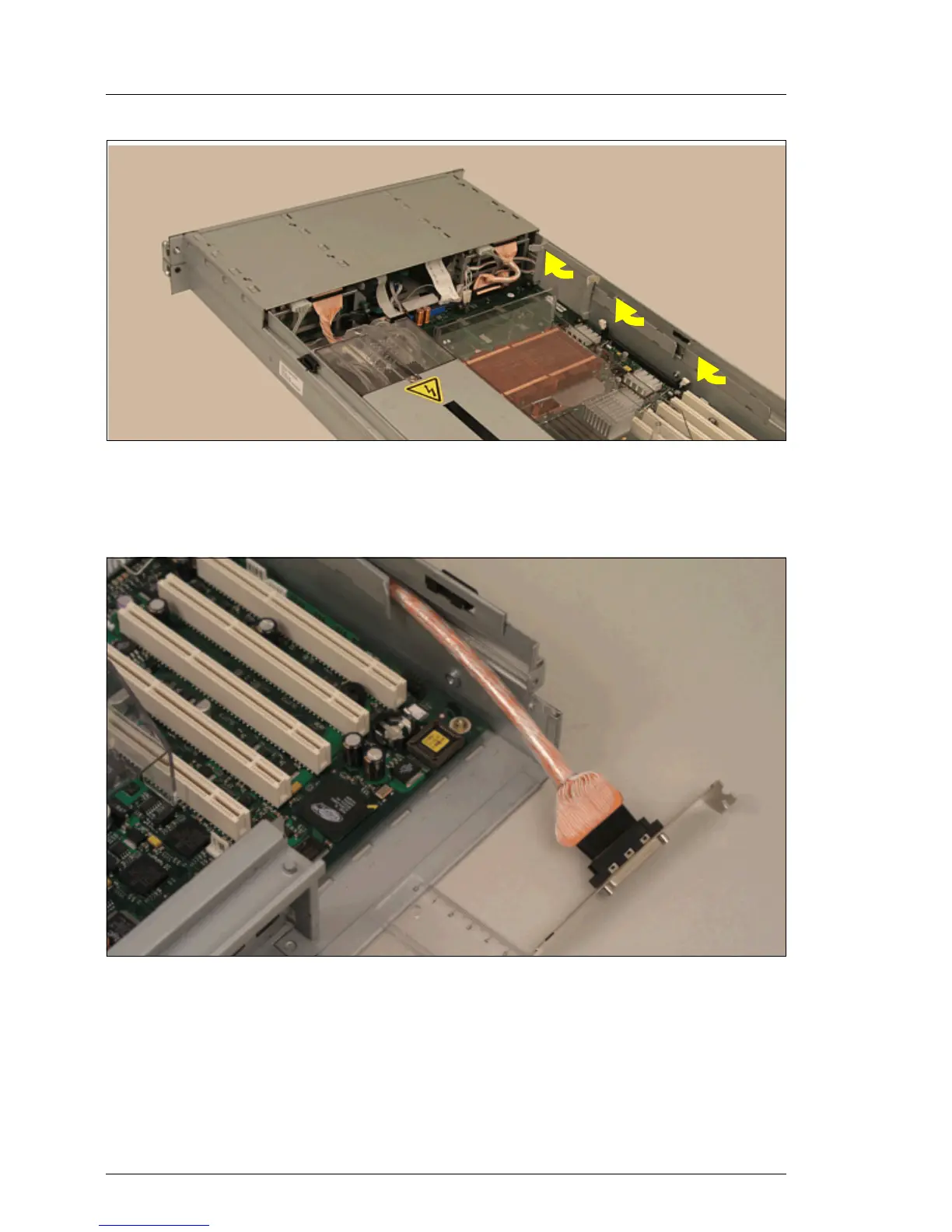

Figure 63: opening cable duct
Ê Open the cabel channel cover, see „Removing cable channel cover“ on
page 79.
Figure 64: external SCSI interface
Ê Thread the cable in the cable channel.
V CAUTION
Leave an extra 6 cm cable protruding.
Ê Close the cable duct.
