FC Hard Disk Drives Installing/Removing HDD/Dummy Module

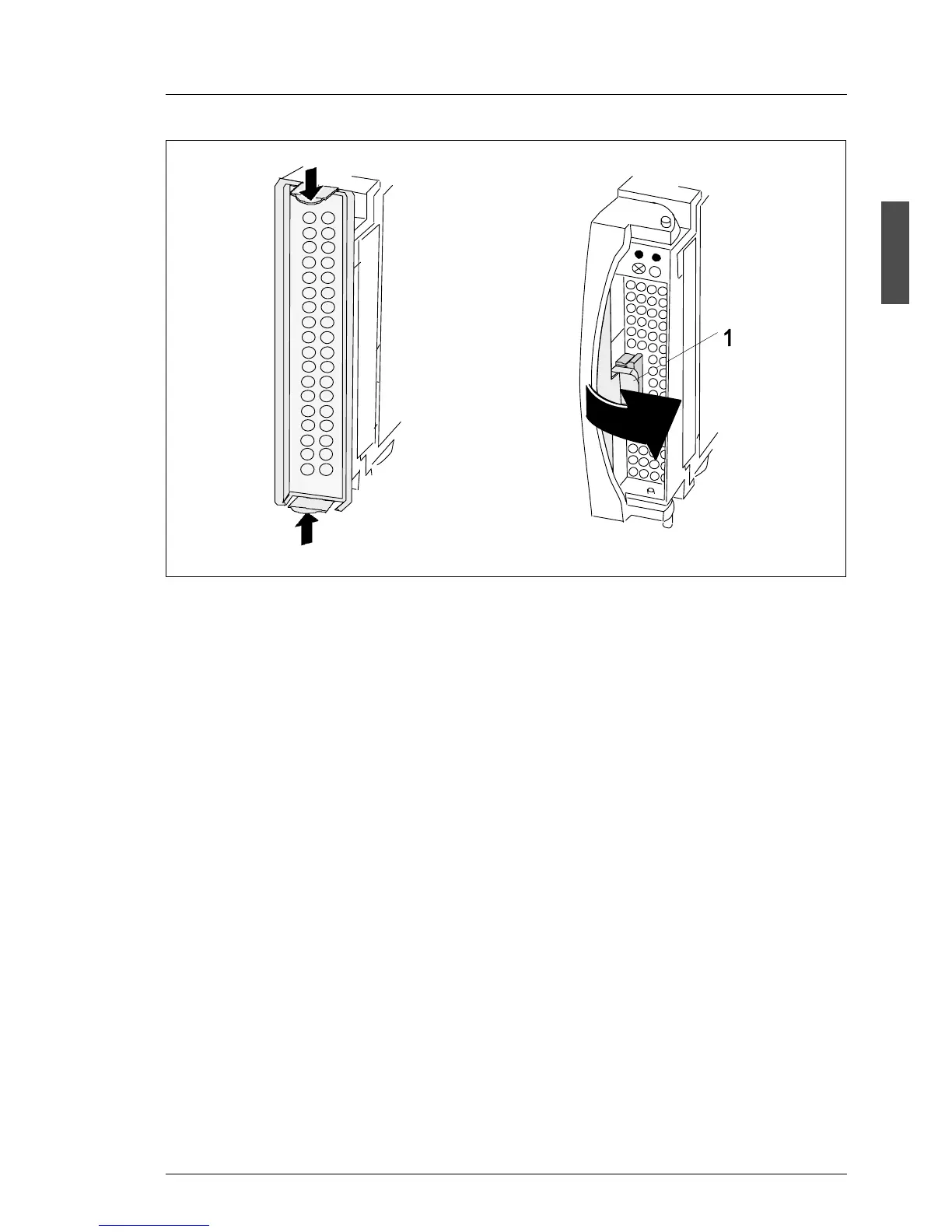

Figure 15: Dummy Module and corresponding HDD Module
V CAUTION!
Keep the dummy module for future use. If the HDD module is removed
again and not replaced with a new module, then the dummy module must
be reinstalled due to cooling, the applicable EMC (electromagnetic
compatibility) regulations and fire protection.
Installing the HDD module
Ê Solve the locking mechanism by pressing the locking button (1) .
Ê Push the handle of the HDD module fully in the direction of the arrow.
