Fujitsu PRIMERGY TX200 S2 Options Guide

42 Options Guide U41593-J-Z156-2-76
Replacing the processor Processors

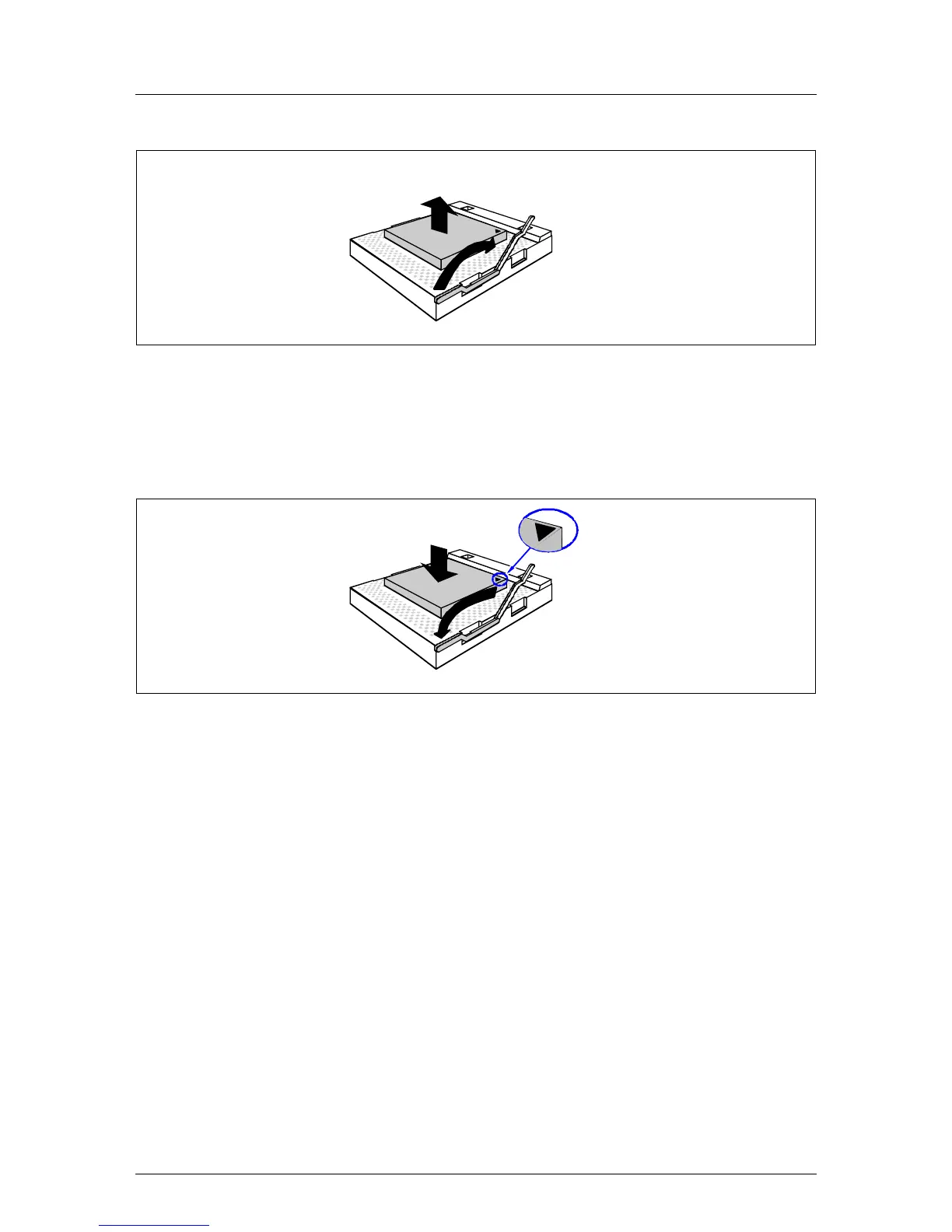

Figure 29: Removing an old processor
Ê Release the socket lifter by pressing it sideways and pull it upward as far as
it will go (1).
Ê Lift the installed processor carefully out of the socket (2).
Figure 30: Inserting a new processor
Ê Position the new processor over the socket and then carefully press it into
the socket (1).
V CAUTION!
The processor can only be installed in one particular direction. Note
the marking on one of the corners. To avoid damaging the pins or the
processor, do not force it into the socket.
Ê Lock the processor in place in the socket by returning the socket lifter to its
original position (2).
Ê Apply a small amount of thermal paste to the upper side of the new
processor.
Ê Ensure a thin and even distribution of the thermal paste.
Ê Place the heat sink on the processor socket (see page 37).
Ê Fasten the heat sink by tightening the four screws in a crossover pattern.
2
1
1
2
