Installing a controller (PCI slots 1-4) Controller in the PCI slots
8.1 Installing a controller (PCI slots 1-4)
Ê Open the server as described in the chapter “Preparation” on page 19ff.

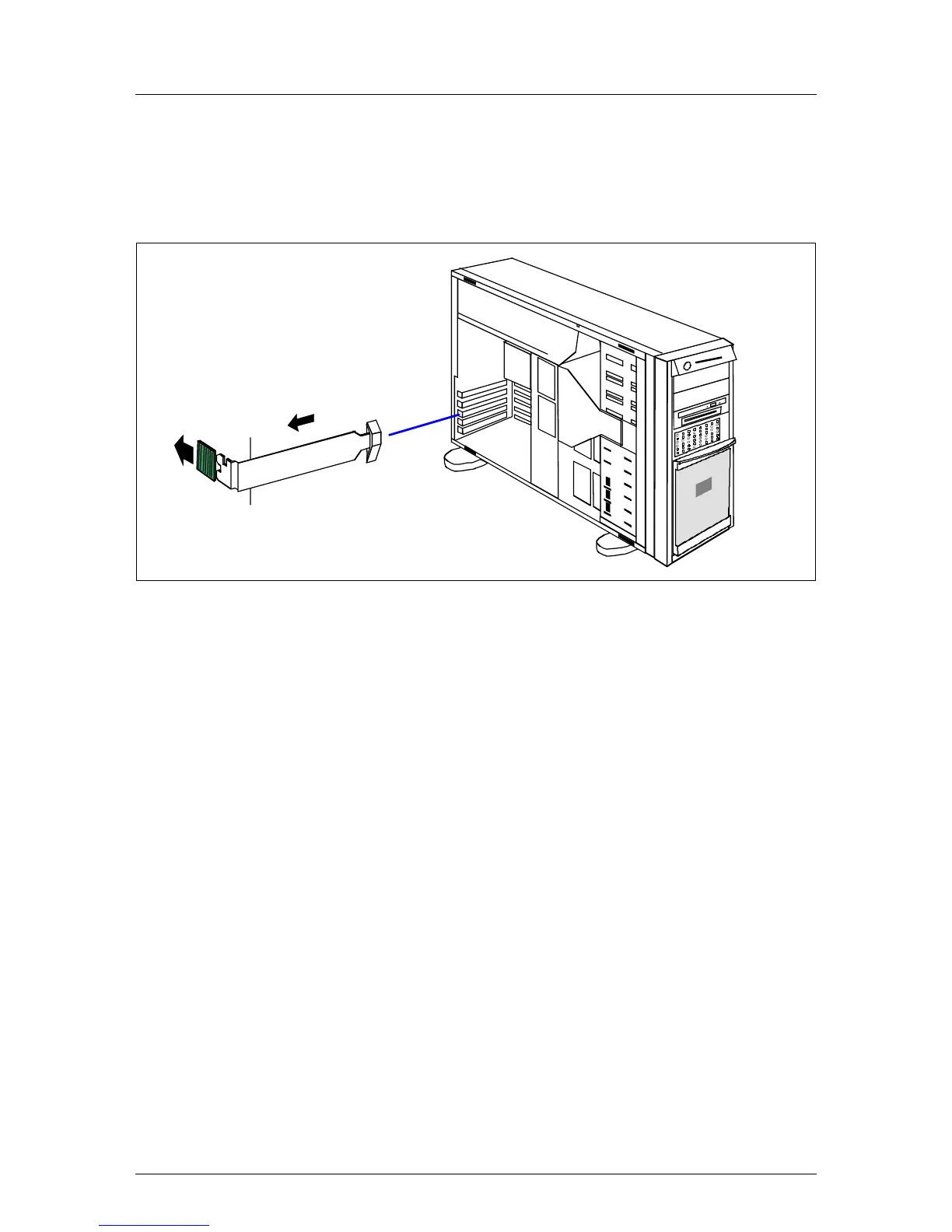

Figure 46: Removing the rear cover
Ê Push the green fastening slider toward the rear (1).
Ê Remove the PCI slot’s rear cover (2).
V CAUTION!
Keep the rear cover of the PCI slot for future use. If you remove the
controller again and do not replace it with a new one, the rear cover
must be reinstalled to comply with EMC regulations and to satisfy
cooling requirements and fire protection measures.
2
1
