68 Options Guide U41593-J-Z156-2-76
RemoteView Service Board S2 LP RemoteView components
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 97ff.
9.2 RemoteView Service Board S2 LP
I How to install/remove and configure the RSB S2 LP is described in detail
in the “RemoteView Service Board S2/ S2 LP 1.x, Mounting and Setting
Up” manual.
The preferred mounting location for the RSB S2 is PCI slot 5.
The RSB S2 LP is connected to the system board via a power and a data cable.
The RSB S2 LP kit contains an external power supply.
I The RSB S2 LP can be equipped with a low-profile bracket. In this case
extend the bracket using the adapter (K668-C63) from the system
accessory pack:

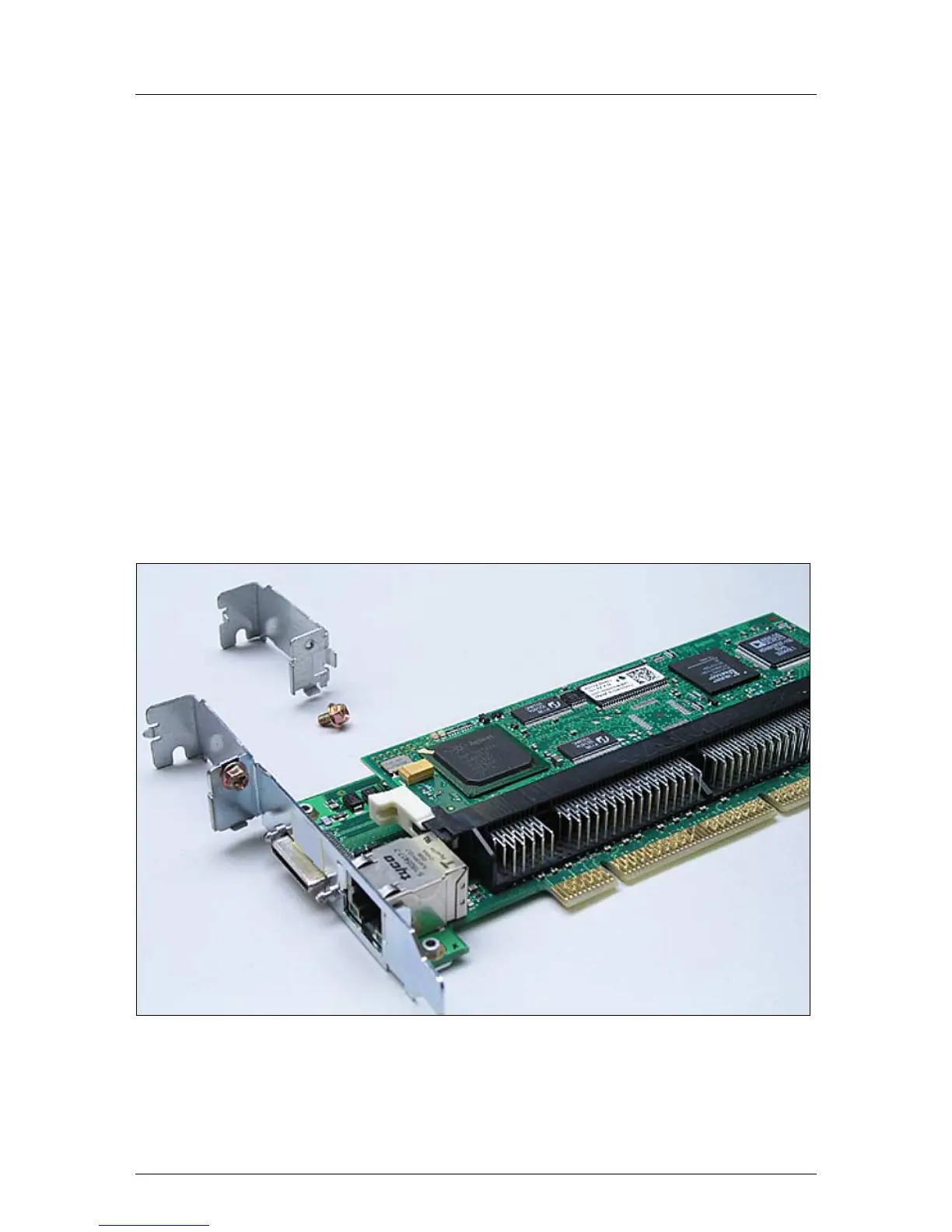

Figure 54: Attaching the adapter
