U41593-J-Z156-2-76 Options Guide 73
11 Parallel interface for printers
V CAUTION!
Observe the safety instructions in the chapter “Safety notes” on
page 13ff.
11.1 Installing a parallel interface
Ê Open the server as described in the chapter “Preparation” on page 19ff.
Ê Remove the ventilation duct over the main memory (see page 28).

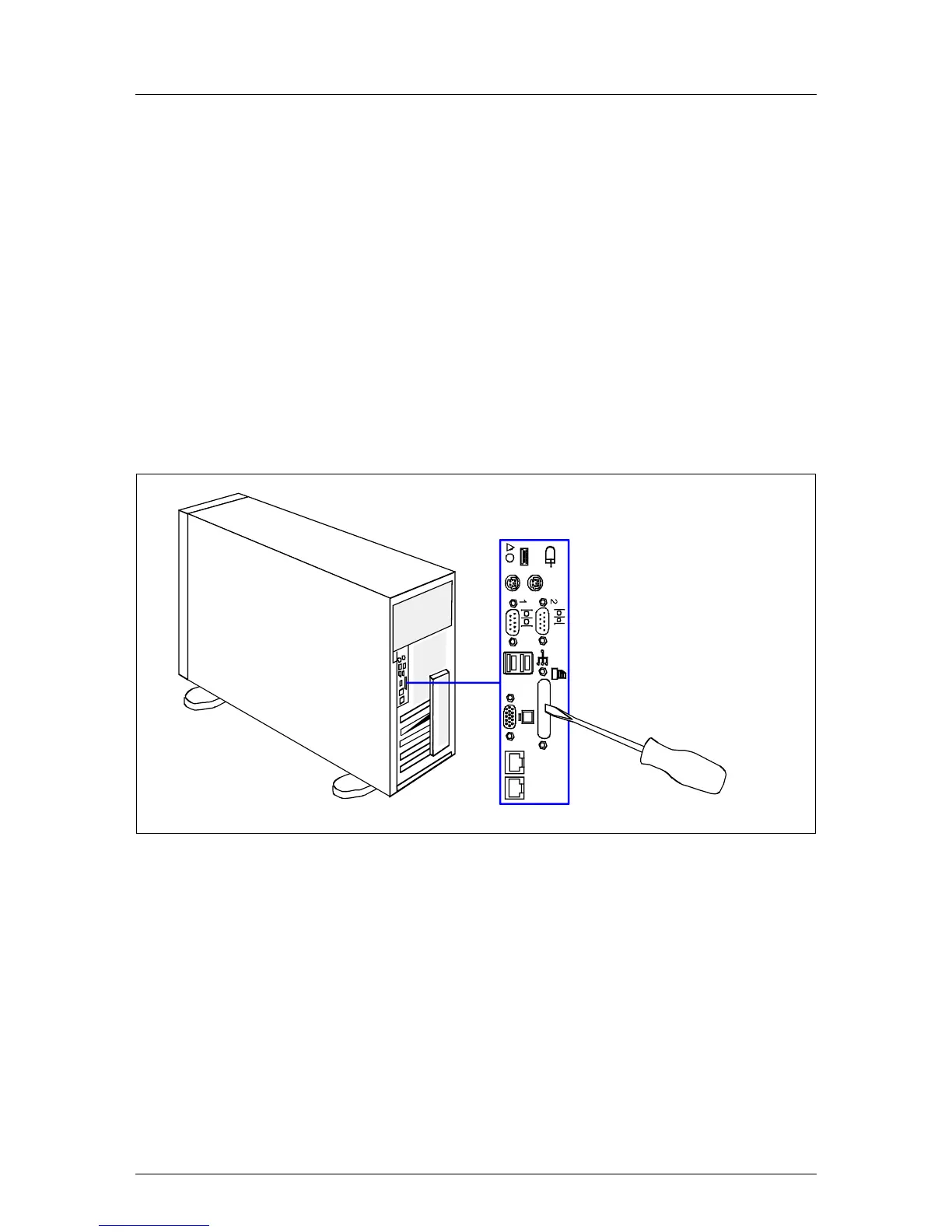

Figure 59: Breaking off the interface plate
Ê Break off the interface plate using a screwdriver.
?
ID
LAN A LAN B
