Fujitsu PRIMERGY TX200 S2 - Removing the Front Cover

20 Options Guide U41593-J-Z156-2-76
Floorstand model Preparation

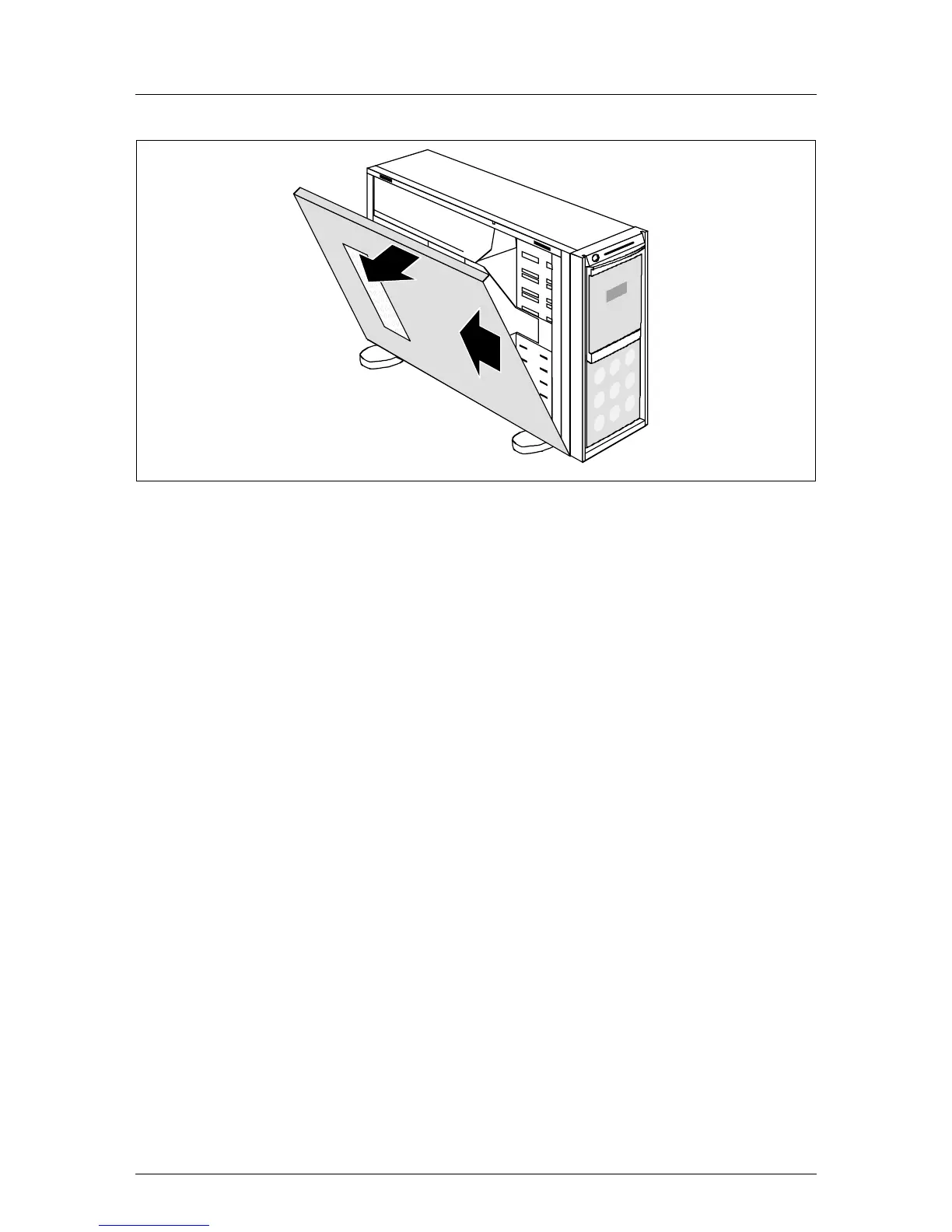

Figure 3: Removing the left-hand side cover
Ê Push back the left-hand side cover approxiate 10 cm (1).
Ê Remove the side cover (2).
4.1.2 Removing the front cover
Remove the front cover when making the following extensions and upgrades:
– Installing further accessible drives
– Upgrading the floorstand model to a rack model
2
1
