10 External SCSI interface
V CAUTION!
Observe the safety instructions in the chapter “Safety notes” on
page 13ff.
10.1 Installing the external SCSI interface
Ê Open the server as described in the chapter “Preparation” on page 19ff.
Ê Remove the ventilation duct over the system fans (see page 32).
Ê Remove the processor fan holder (see page 35).

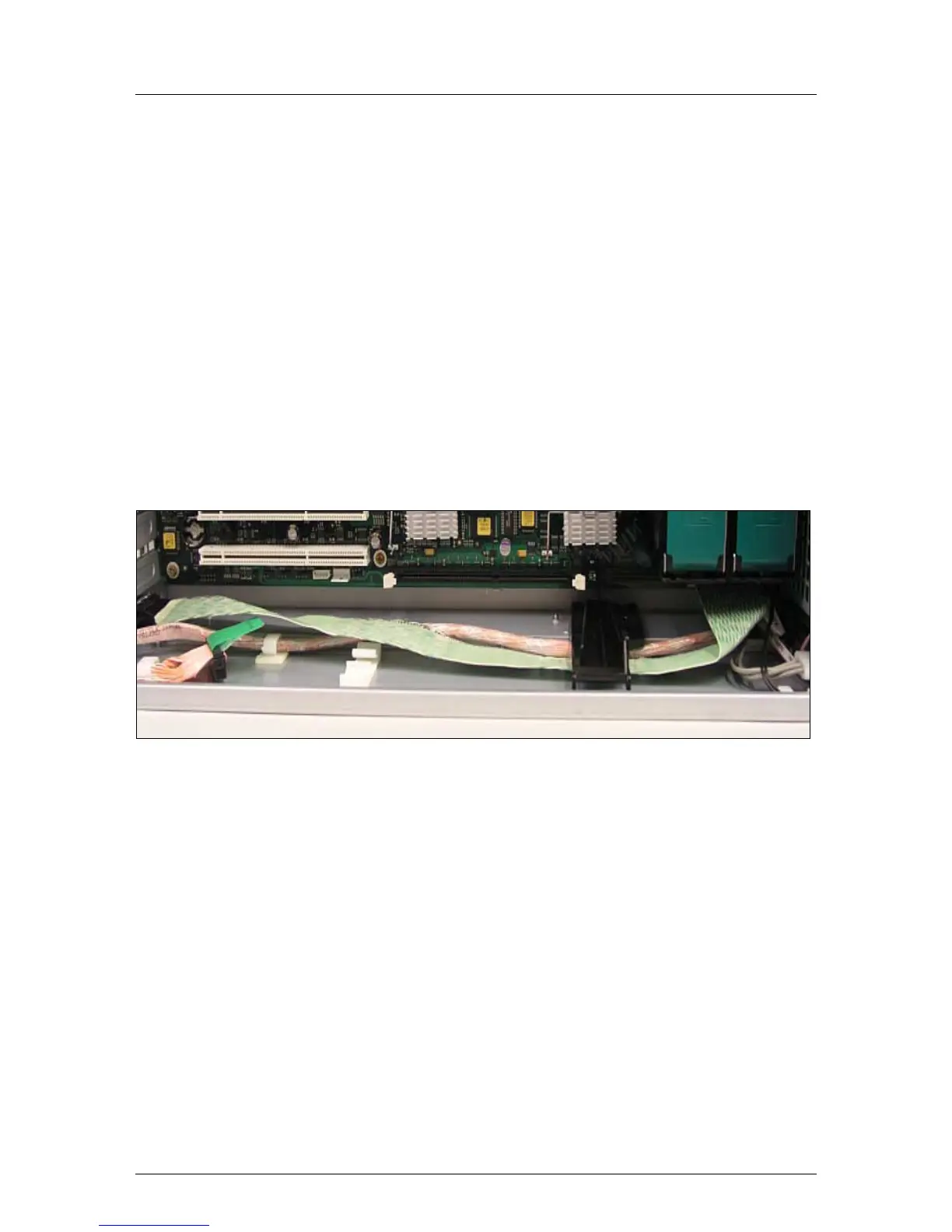

Figure 57: Routing the cable
Ê Route the SCSI cable as shown in the photo.
Ê Attach the SCSI cable’s connector to port SCSI A on the system board (see
the configurations in the Appendix).
