Completion Floorstand model

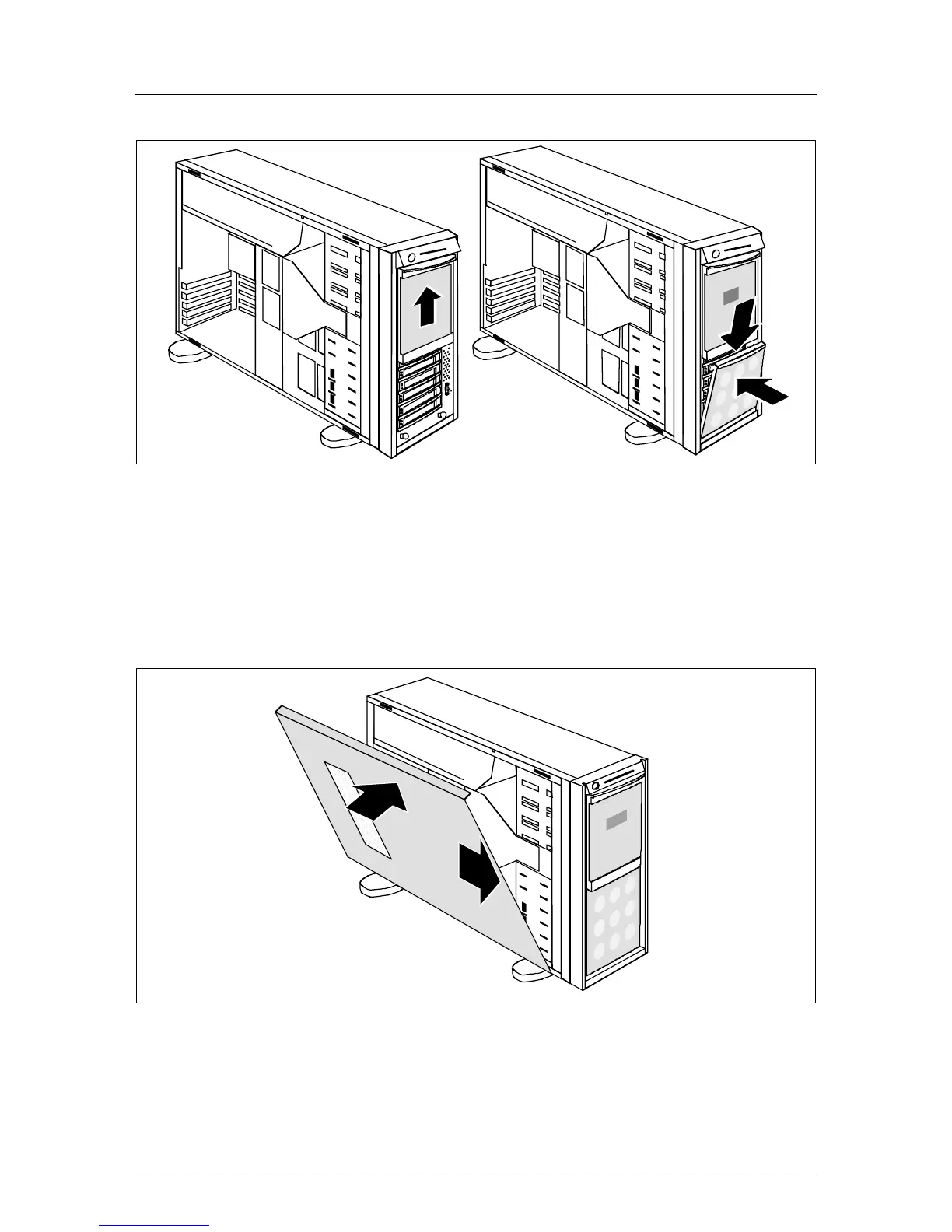

Figure 84: Attaching the hard disk cover
Ê Push the drive cover upward as far as possible (1).
Ê Reinstall the hard disk cover (2 + 3).
15.1.2 Closing the server
Figure 85: Attaching the left-hand side cover
Ê Position the left-hand side cover in such a way that it protrudes approxiate
10 cm at the rear (1). Shut the left-hand side cover.
Ê Push the left-hand side cover all the way forward (2).
1
3
2
1
2
