Installing an accessible 5.25-inch drive Accessible drives
7.2 Installing an accessible 5.25-inch drive
The 5.25-inch drives available are magnetic tape drives and DVD-ROM burners.
These drives can be installed in the two free 5.25-inch bays.
Ê Open the server and remove the front cover or rack front cover as described
in the chapter “Preparation” on page 19ff.
I New 5.25-inch drives are supplied without EasyClick rails. Before
installing a new 5.25-inch drive you must therefore remove the EasyClick
rails from the dummy cover and mount the EasyClick rails on the new
5.25-inch drive.
I If you install a magnetic tape drive with double height (3.2-inch), both
dummy covers of the free 5.25-inch bays must be removed.

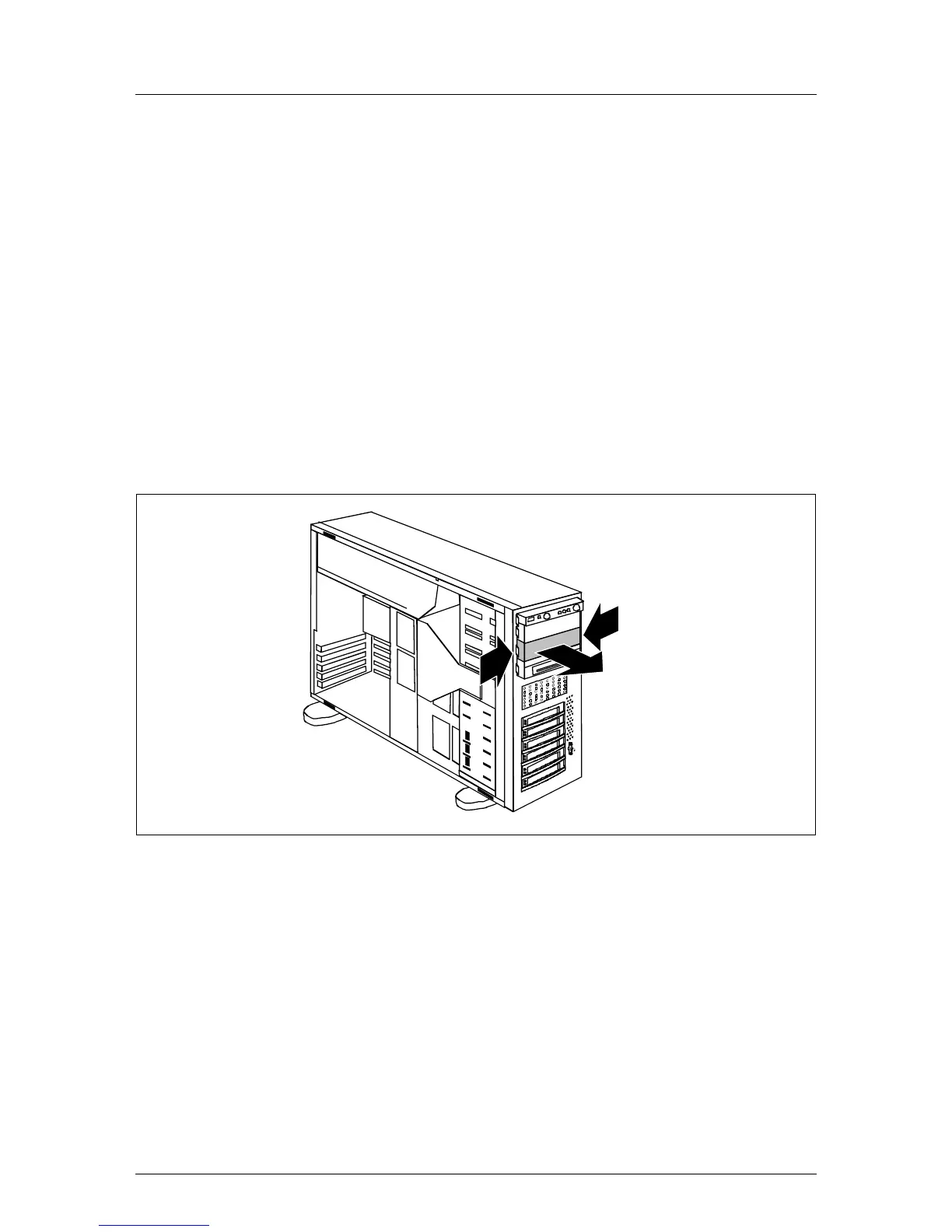

Figure 35: Removing the dummy cover
Ê Press the two metal tongues of the EasyClick rails inward (1) until the locking
mechanism is released.
Ê Remove the dummy cover from the bay (2).
