U41593-J-Z156-2-76 Options Guide 69
RemoteView components RemoteView Service Board S2 LP
Ê Open the server as described in the chapter “Preparation” on page 19ff.

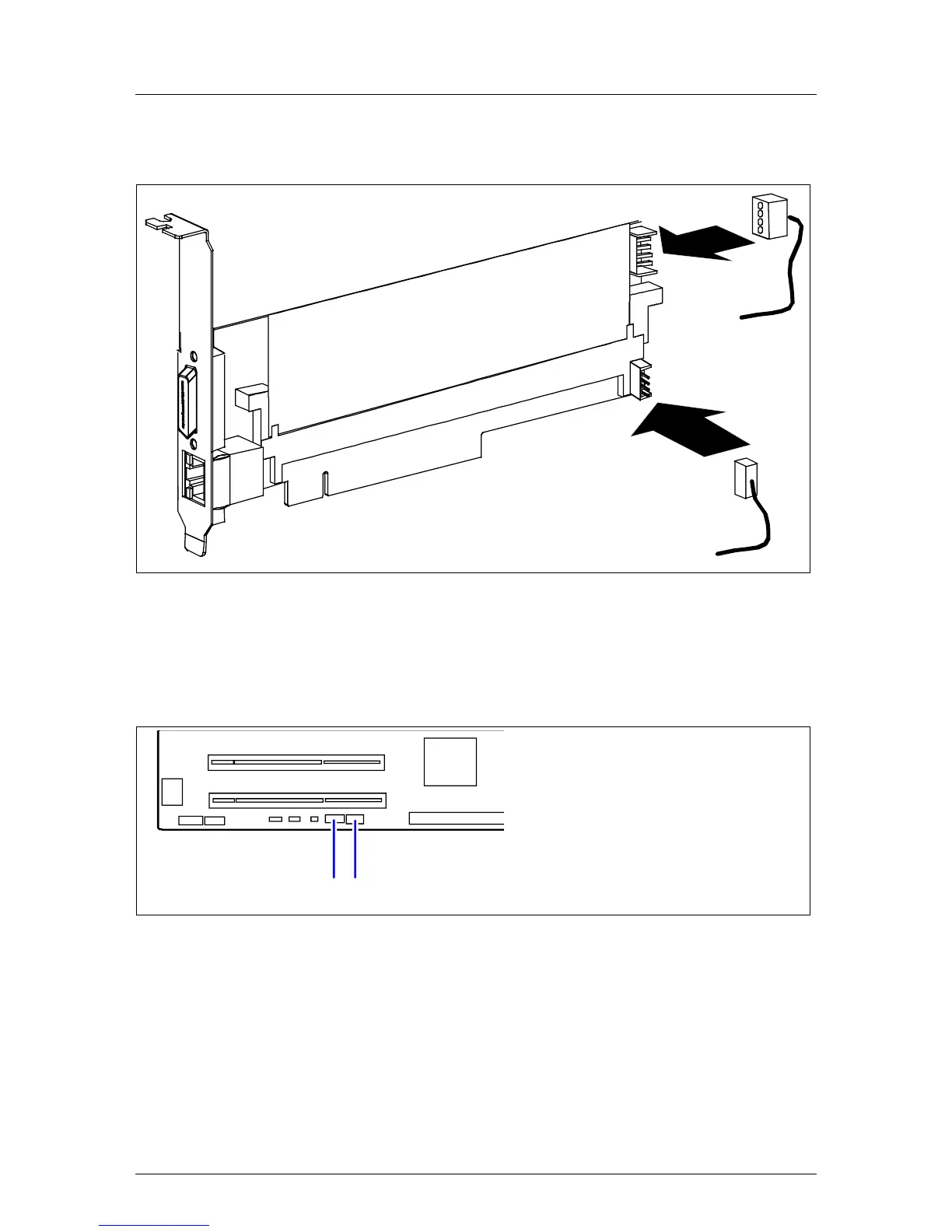

Figure 55: Connecting cables to the RSB S2 LP
Ê Connect the power cable (1) and the data cable (2) to the RSB S2 LP.
Ê Install the RSB S2 LP in PCI slot 5 as described in section “Installing a
controller (PCI slot 5)” on page 60.
Figure 56: Connecting cables to the system board
Ê Connect the data cable to the connector IPMB (1) and the power cable to the
connector KVM Power (2) on the system board.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 97ff.
1
2
Ausschnitt D1919
12
