U41593-J-Z156-2-76 Options Guide 59
Controller in the PCI slots Installing a controller (PCI slots 1-4)

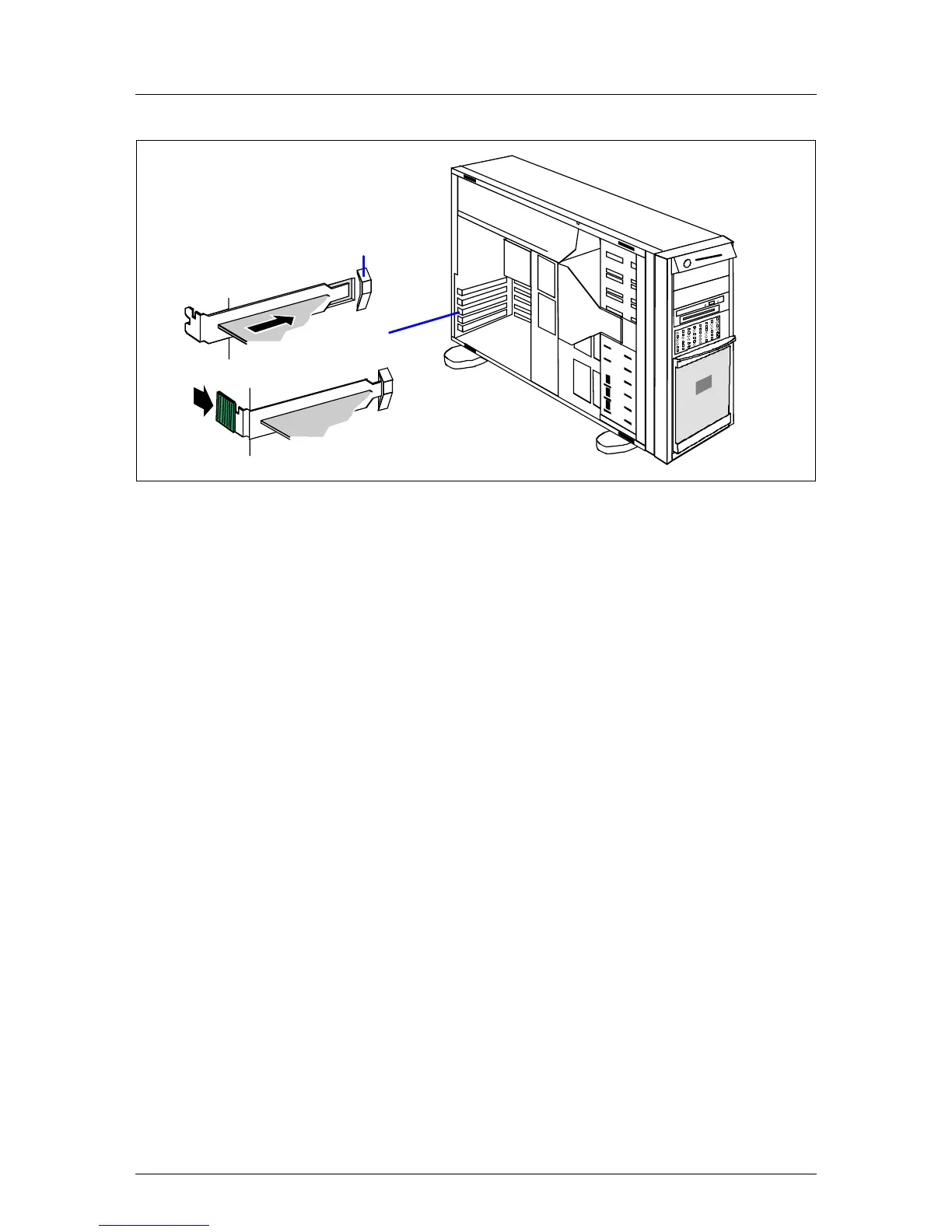

Figure 47: Installing a controller
Ê Install the controller in the PCI slot and press it carefully into the associated
plug-in location on the system board (1). Ensure that the rear cover fits into
the recess (a).
Ê Push the green fastening slider over the rear cover’s bracket (2).
Ê If required, connect the cables to the controller and other components.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion” on page 97ff.
1
2
a
