46 Options Guide U41593-J-Z156-2-76
Installing a slim line CD/DVD-ROM drive Accessible drives

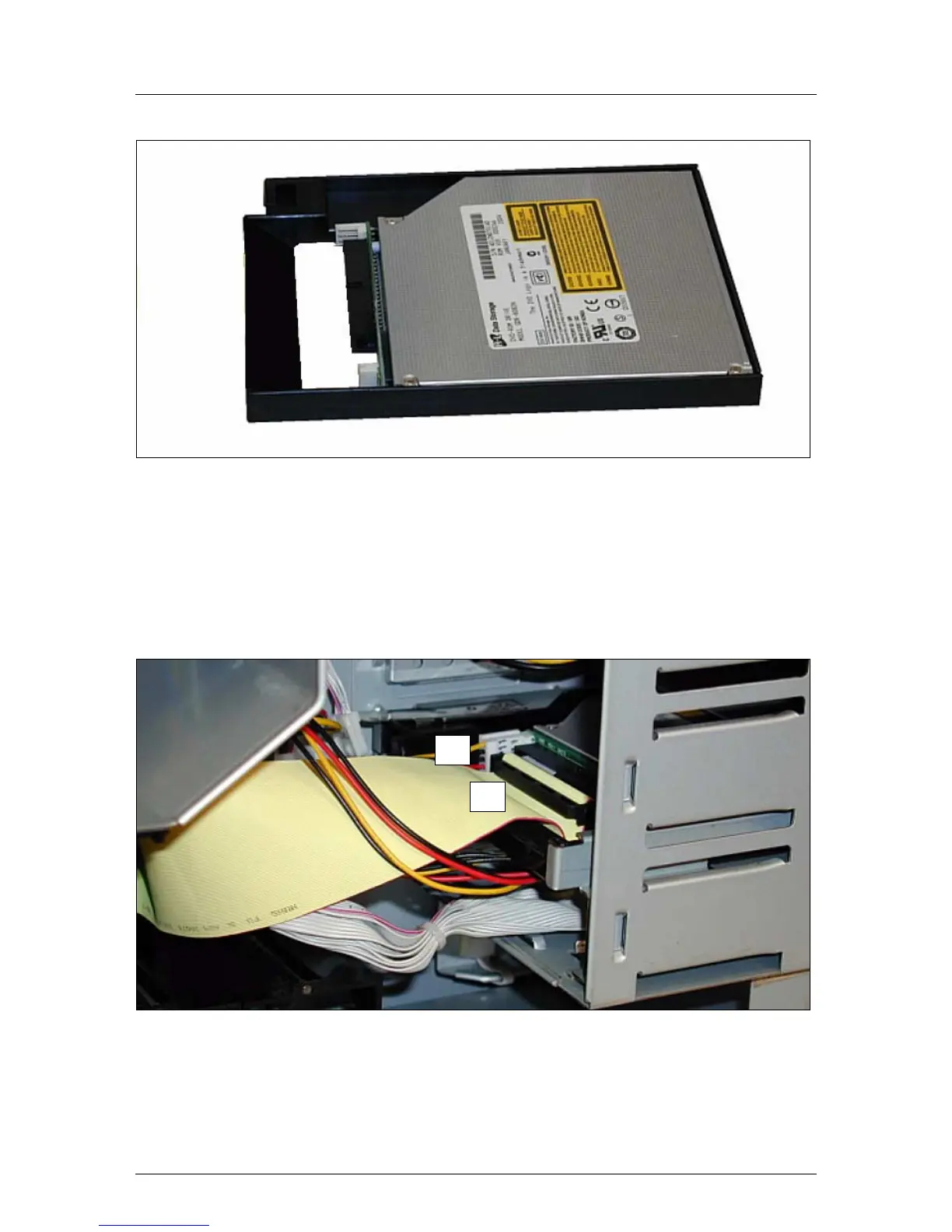

Figure 32: Installing the CD-DVD-ROM drive in the mounting frame
Ê Install the slim line CD/DVD-ROM drive in the provided mounting frame. No
screws are needed. The mounting frame has little noses which fit into the
CD/DVD-ROM drive.
Ê Push the mounting frame in its former bay until the locking tab engages at
the rear.
Figure 33: Connecting the cables to the CD-DVD-ROM drive
Ê Connect the power cable (1; Standard power supply plug P11 or hot-plug
power supply connector Con 4 of the cable T26139-Y3856-V4) and the data
cable (2; T26139-Y3662-V10) to the slim line CD/DVD-ROM drive.
1
2
