Installing an accessible 5.25-inch drive Accessible drives
Ê Connect the power cable to the accessible drive (see the cabling plans in the
Appendix).
Ê Push the drive fully into the bay until the EasyClick rails latch in place.
Ê Attach the front cover or rack front cover, close the server, connect it to the
power outlet, and switch it on as described in the chapter “Completion” on
page 97ff.
You will find in the following figures which holes and screws should be used for
the magnetic tape dives.
I The magnetic tape drive LTO2 Ultrium needs a bar. This bar is positioned
between the EasyClick rails and the housing of the magnetic tape drive.

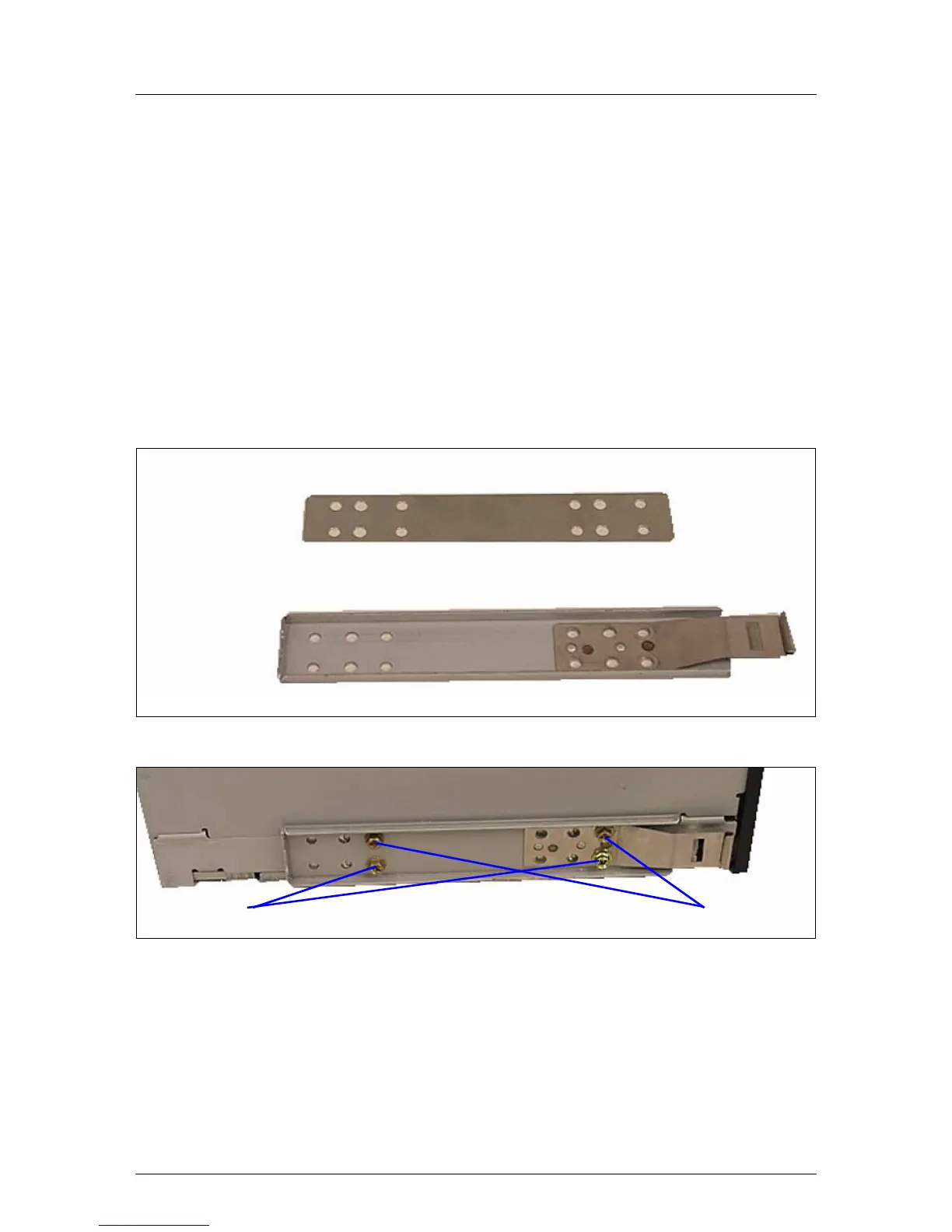

Figure 37: Bar- magnetic tape drive LTO2 Ultrium
Figure 38: Attaching the EasyClick rails - magnetic tape drive LTO2 Ultrium
UNC
M3x4.5mm
