MDE-3893P Encore® and Eclipse® Series Owner’s Manual · December 2011 Page 47
Periodic Maintenance Requirements Maintaining Units
5 Feed the new paper into the inlet until the paper passes over the stainless steel V-shaped cutter
and out of the chute exit at the front of the dispenser.
Note: The paper must run straight into the chute. Straighten and center the paper as required
when feeding.

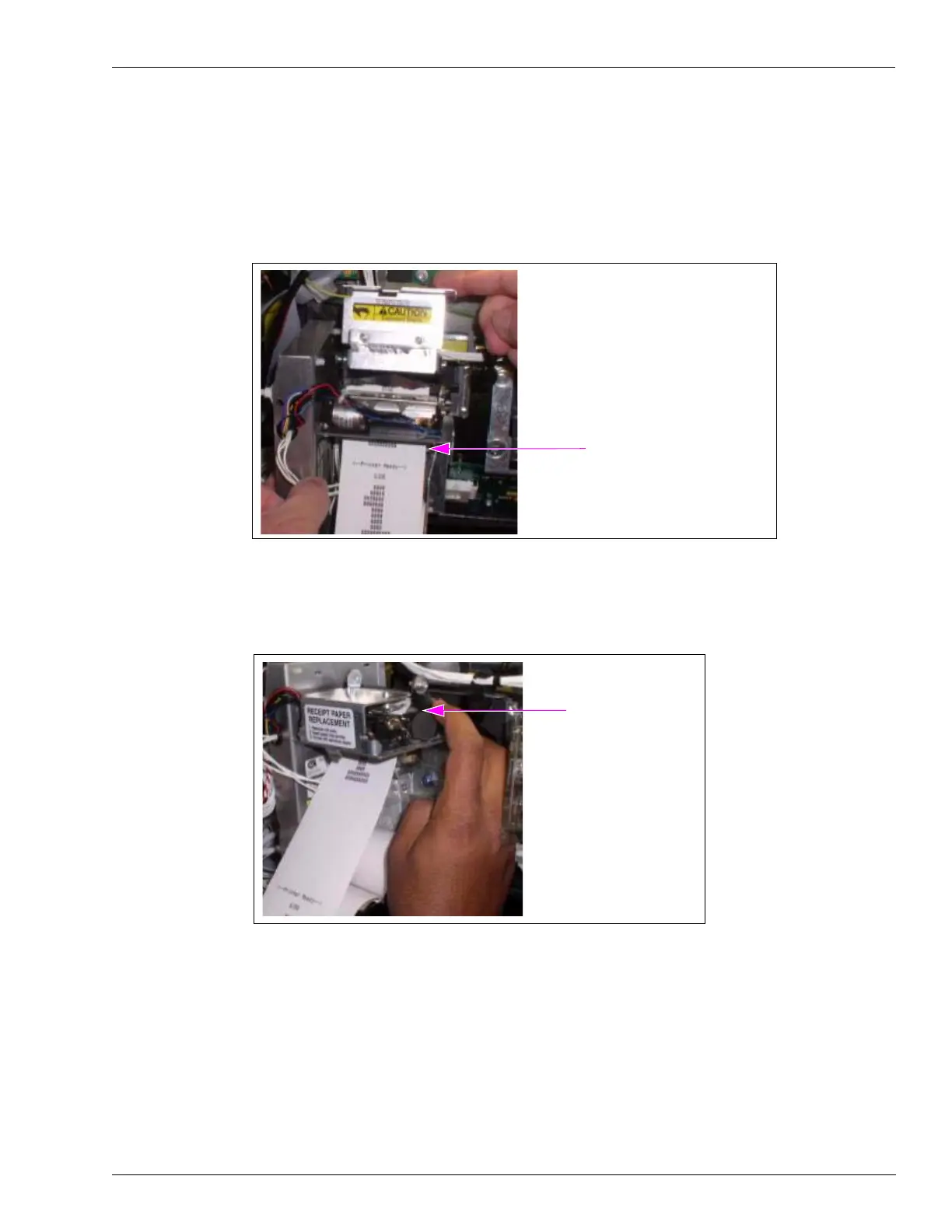

Figure 5-6: Paper Feed
Paper straightened and centered
when fed into the Inlet and Chute
6 Push the paper release lever completely in the forward direction (away from you).
Figure 5-7: Paper Release Lever - Locking
Paper Release
Lever - Locked Position
To Next Page
