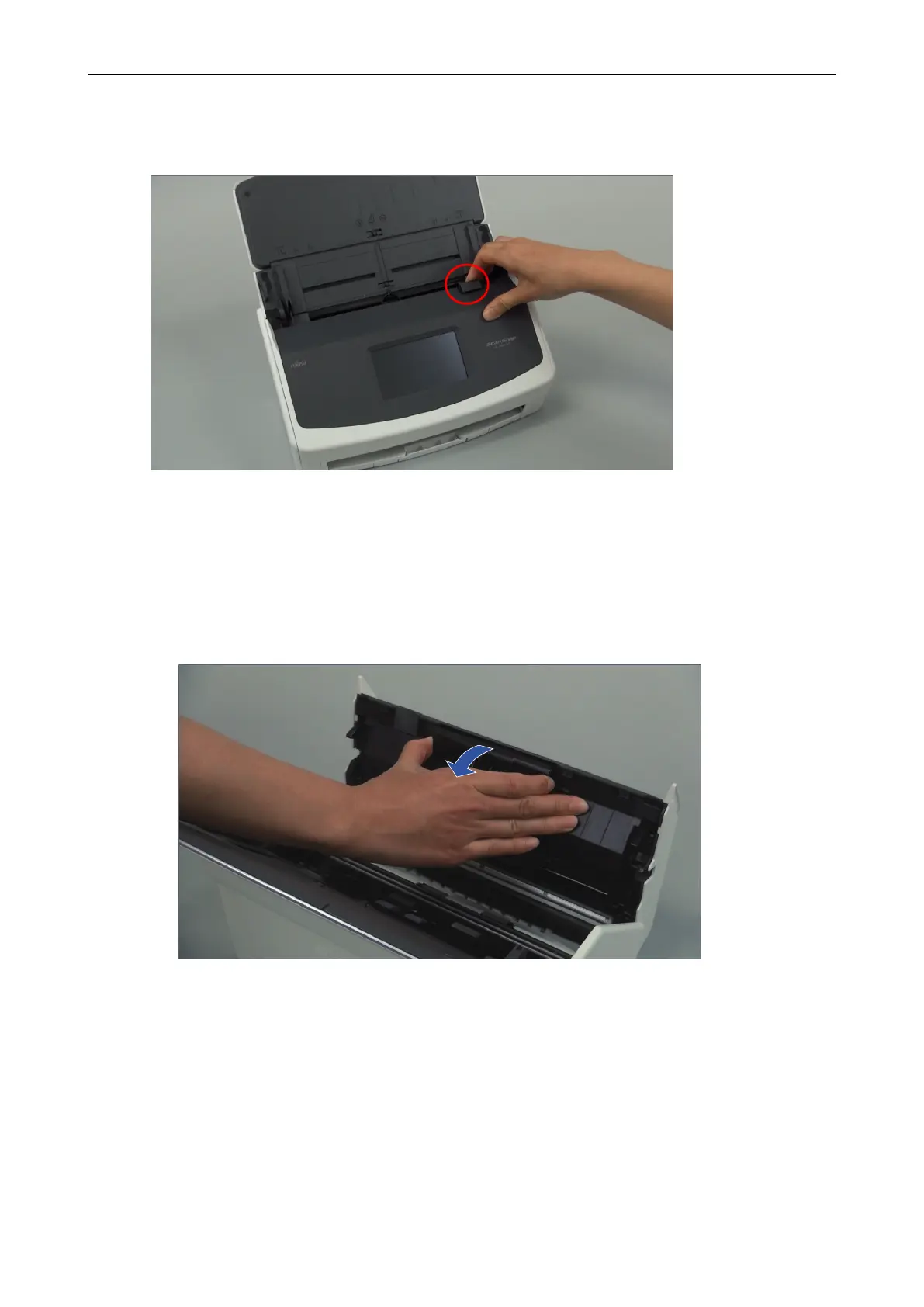

4. Pull the ADF release tab towards you to open the ADF top section.
The body of the ScanSnap may vary in color depending on the region where you purchased
the ScanSnap.
Example: iX1600
5. Replace the brake roller.
1. Open the brake roller cover.
Hold both ends of the cover, and open it in the direction of the arrow.
The body of the ScanSnap may vary in color depending on the region where you
purchased the ScanSnap.
2. Remove the shaft of the brake roller from the ScanSnap.
Lift the brake roller to remove the right side of the shaft, and then pull out the shaft from the
hole on the left.
The body of the ScanSnap may vary in color depending on the region where you
purchased the ScanSnap.
