Parts and Functions of S1300i
This section explains the names and functions of the ScanSnap parts.

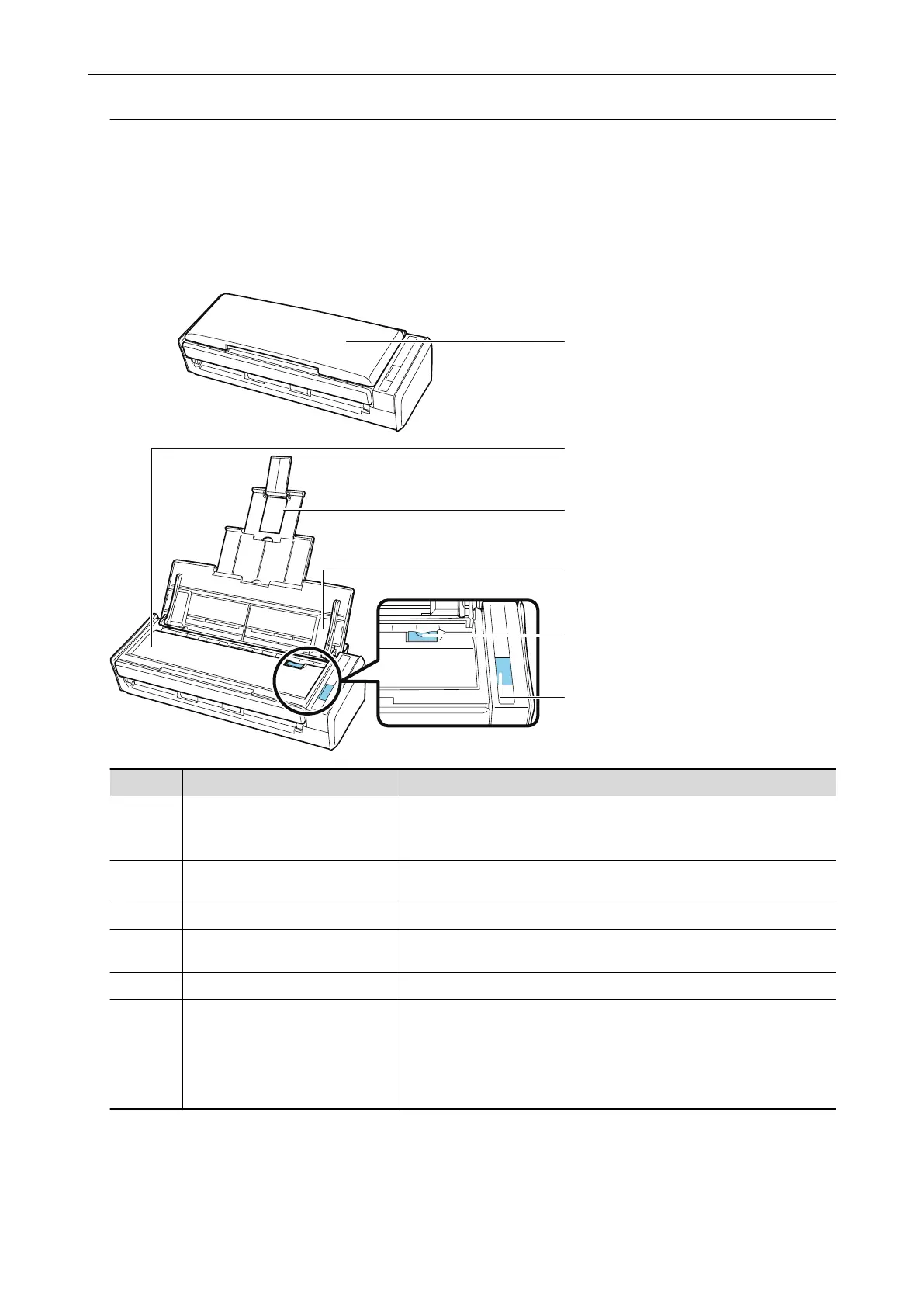

Front
No. Name Description
1 ADF paper chute (cover) (*1) Open it to use the ScanSnap.
Opening it turns on the ScanSnap. Then, you can load a document
on it.
2 ADF top section Open it to remove jammed documents, replace the Roller Set, or
clean the inside of the ScanSnap.
3 Extension Pull out when scanning long documents.
4 Side guide Adjust to the width of documents to prevent them from getting
skewed.
5 ADF release tab Pull this tab to open the ADF top section.
6 [Scan] button (*1) Starts scanning.
Indicates the status of the ScanSnap as follows:
Blue (lit): Ready
Blue (flashing): Scanning
Orange (flashing): Error
*1: When the ScanSnap has turned off automatically because of the automatic power off function,
either press the [Scan] button (this will not start scanning), or close the ADF paper chute (cover),
then open it again to turn the ScanSnap back on.
