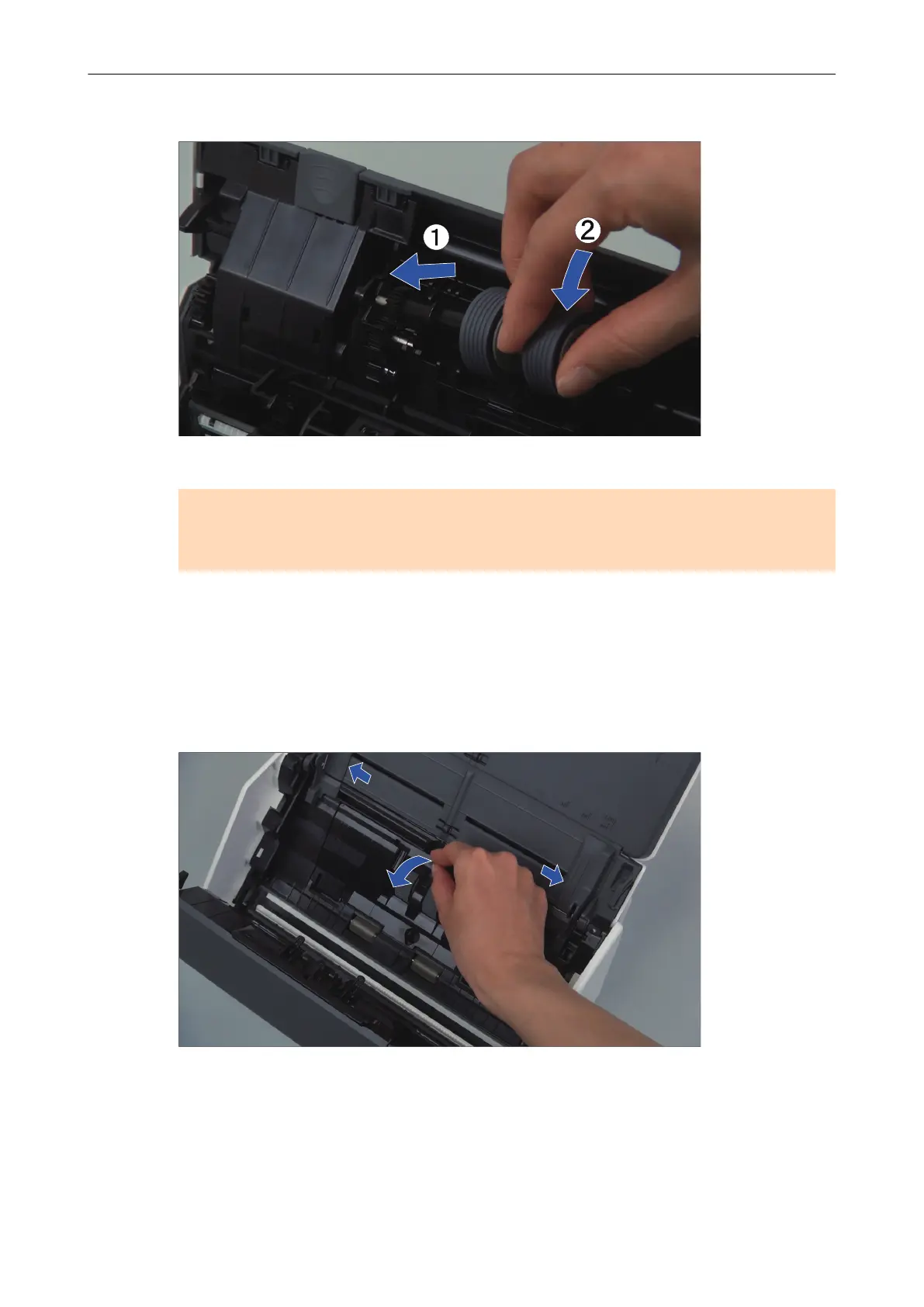

Insert the left end of the shaft in the hole properly, and then attach the right side of the
shaft into place.
6. Close the brake roller cover.
ATTENTION
Make sure that the shaft is attached firmly. Otherwise, paper jams or other feeding errors
may occur.
6. Replace the pick roller.
1. Open the sheet guide.
Slide the side guides all the way. Open the sheet guide by hooking your finger in the dip of
the sheet guide.
The body of the ScanSnap may vary in color depending on the region where you
purchased the ScanSnap.
2. Rotate the bushing in the direction of the arrow.
The body of the ScanSnap may vary in color depending on the region where you
purchased the ScanSnap.
