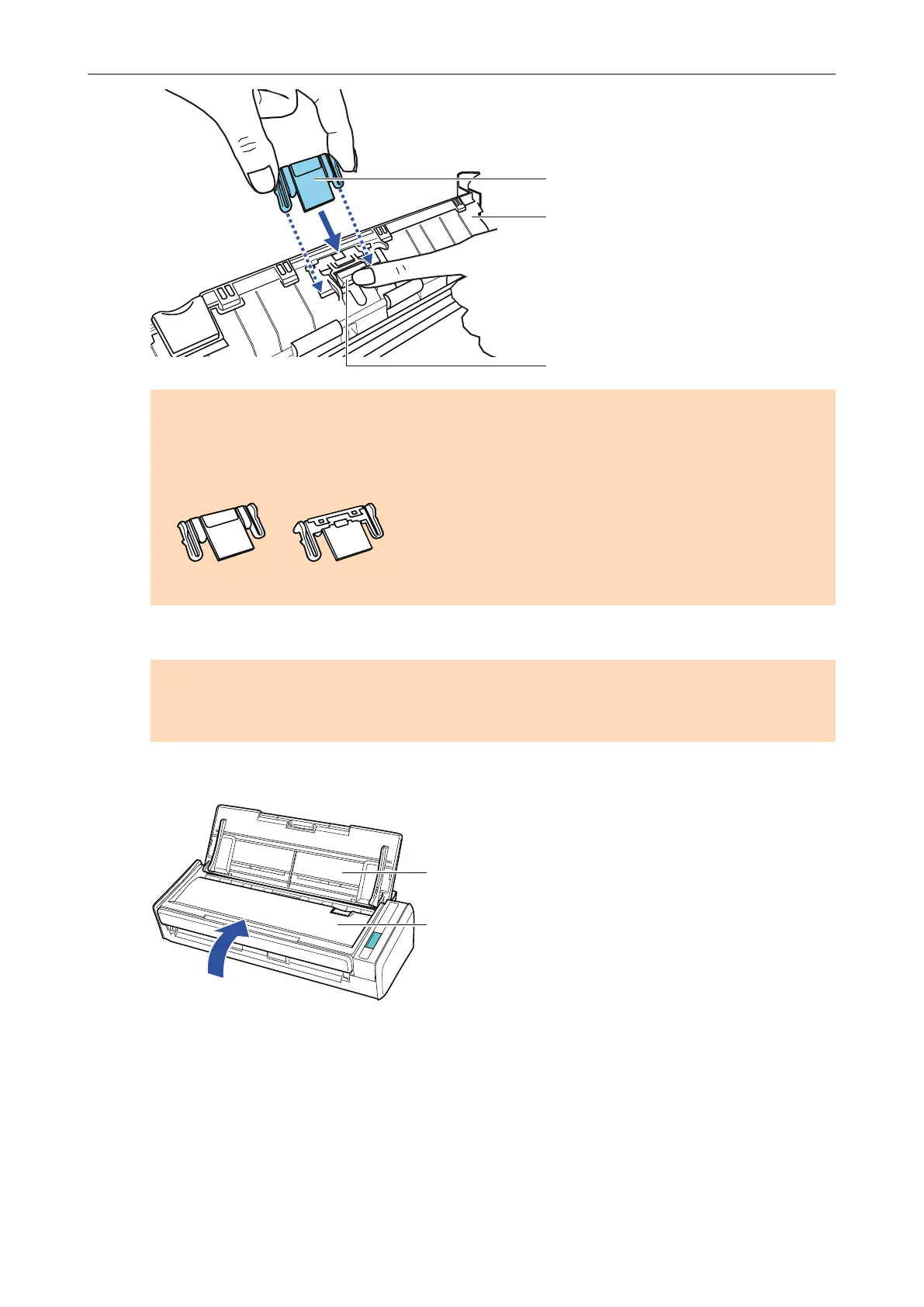

Pad Assy
ADF Top Section
Pad Plate
ATTENTION
Attach the pad assy with the front side up.
If the pad assy is attached upside down, paper jams or other feeding errors may occur.
Correct Incorrect
Front Back
6. Make sure that the pad assy is attached to the retaining hook firmly.
ATTENTION
Make sure that the pad assy is attached firmly. Otherwise, paper jams or other feeding errors
may occur.
7. Close the ADF top section.
ADF Paper Chute (Cover)
ADF Top Section
→ It clicks when it returns to its original position.
8. Connect the power connection cable (power cable or USB bus power cable)
to the power supply source (AC outlet or computer), and turn on the
ScanSnap.
9. Reset the pad assy count.
Replacing Consumables for S1300i
487
