DSC-8V/8VP

B3-7

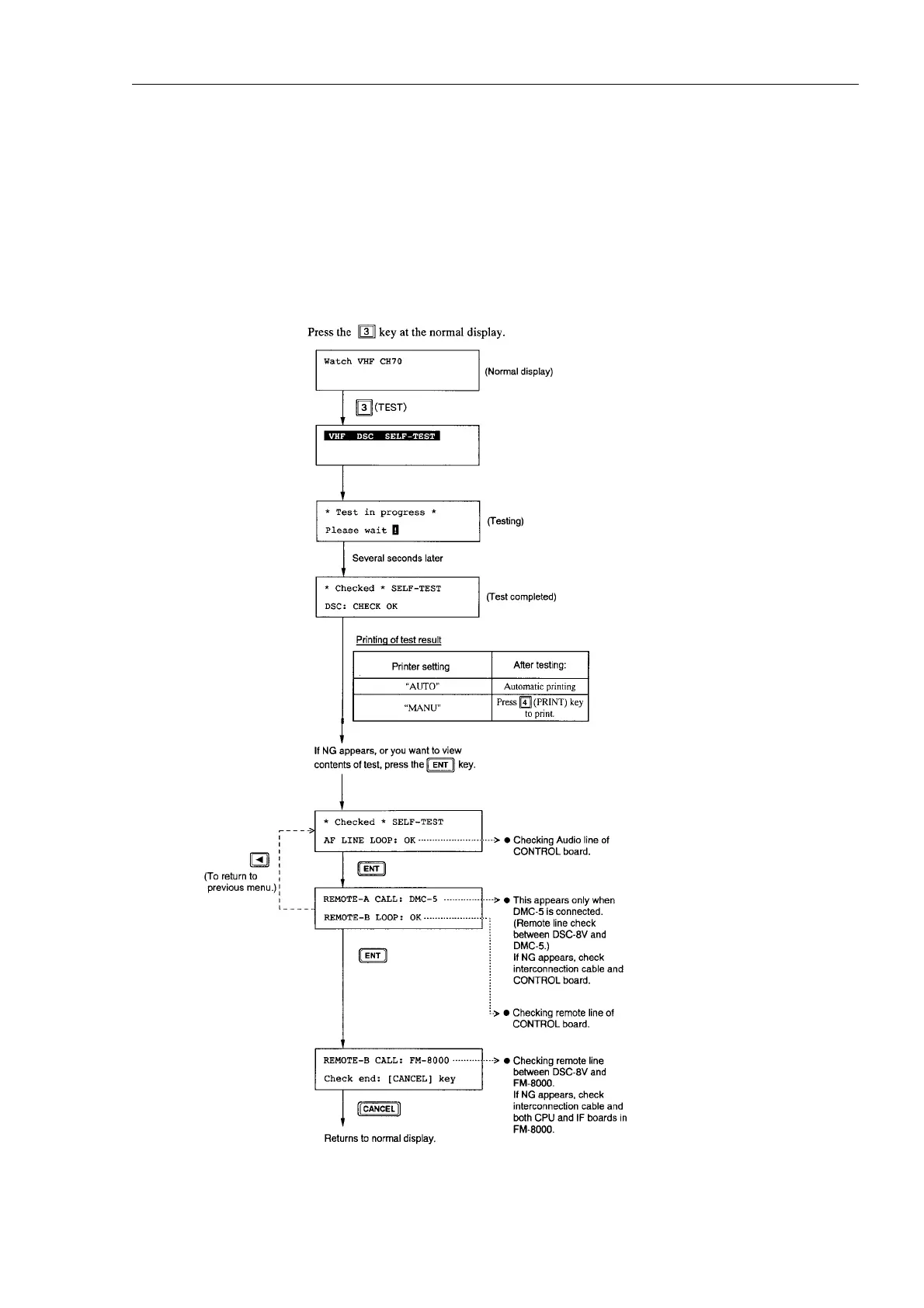

Self test

Pressing the [3] key at normal display automatically starts the daily test and displays the

results.
