FM-7000

E1-2

2. System Settings

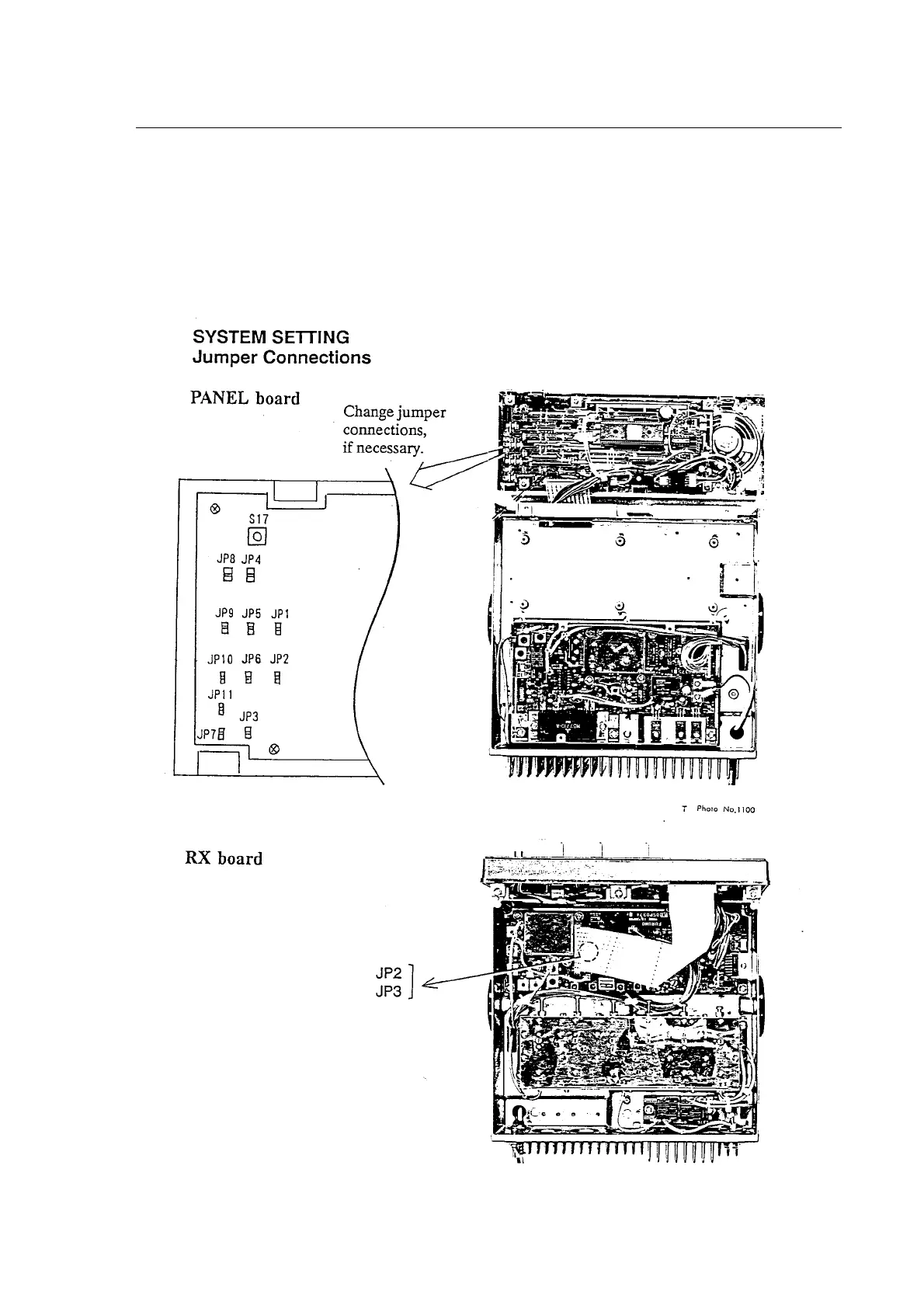

Preset jumper connections on the PANL board, RX board and SUB-CPU board (option)

according to local regulations. You can make USA CH 2/3/4 inoperative.

Note)

2.1
