Furuno FS-5000 - Section B2. DSC-6;6 A; Connector on Rear Panel; Typical Configurations (Type-1)

1. Connector on Rear Panel

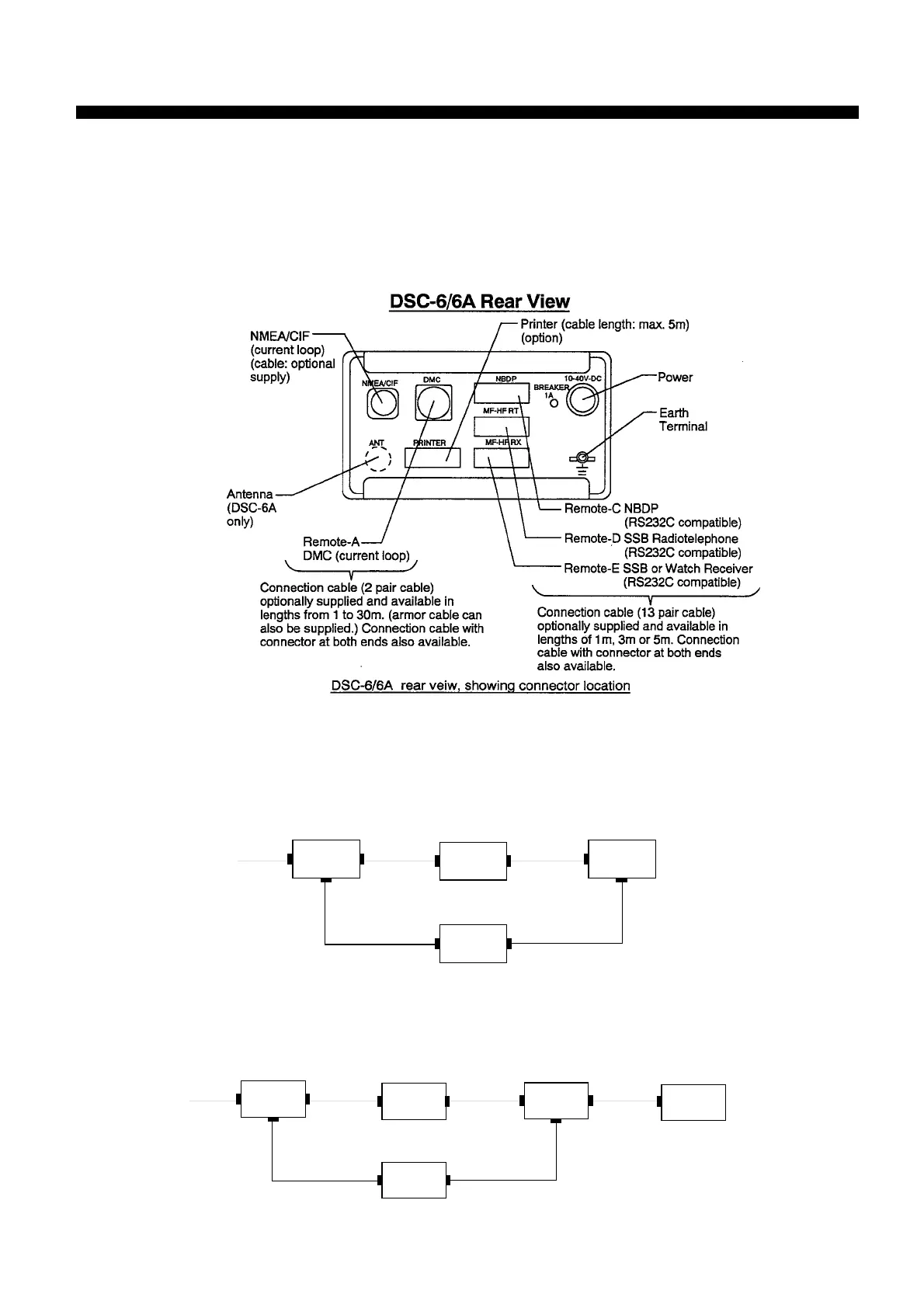

Connect equipment to the DSC-6/6A as shown in the figure which follows.
2. Typical Configurations (Type-1)
EX 1) DSC-6 + AA-50 + DP-5/6 + FS-5000
EX 2) DSC-6 + AA-50 + DP-5/6 + FS-1562
Section B2. DSC-6/6A
