Furuno FS-5000 - Section J1; Connection

1. Connection

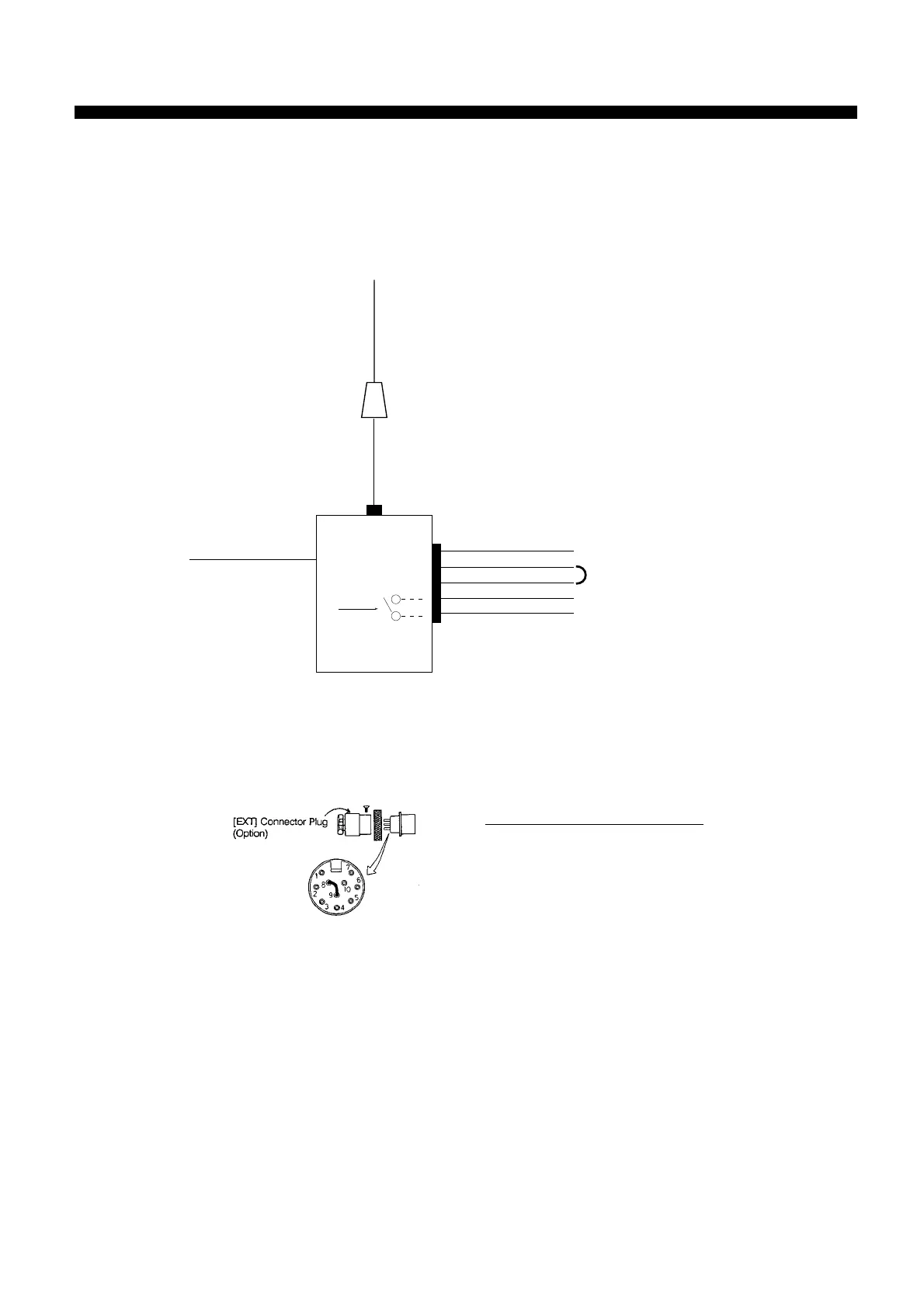

Section J1. NX-500
J1-1
10.8-40 VDC
NMEA/CIF
AF IN
AF OUT
ALM BZ
ALM BZ
PRE-AMP Unit
(NX-5)
Whip Antenna
(1 m or 2.6 m)
NX-500
ANT
External Connector kit
(Option)
SAR MSG.
Jumper wire
Remove the jumper wire
when an external unit (AF signal)
is connected.
[EXT] Connector Plug pin number
1. NAV data in (R-H)
2. NAV data in (R-C)
3. 4. 5 NC
6. ALARM 1
7. ALARM 2
8. NAV RCV SIG OUT
9. NAV SIG IN (NAV COM)
10. 0V
