Furuno FS-5000 - Jumper Settings

To Next Page

To Previous Page

FM-8700

E5-8

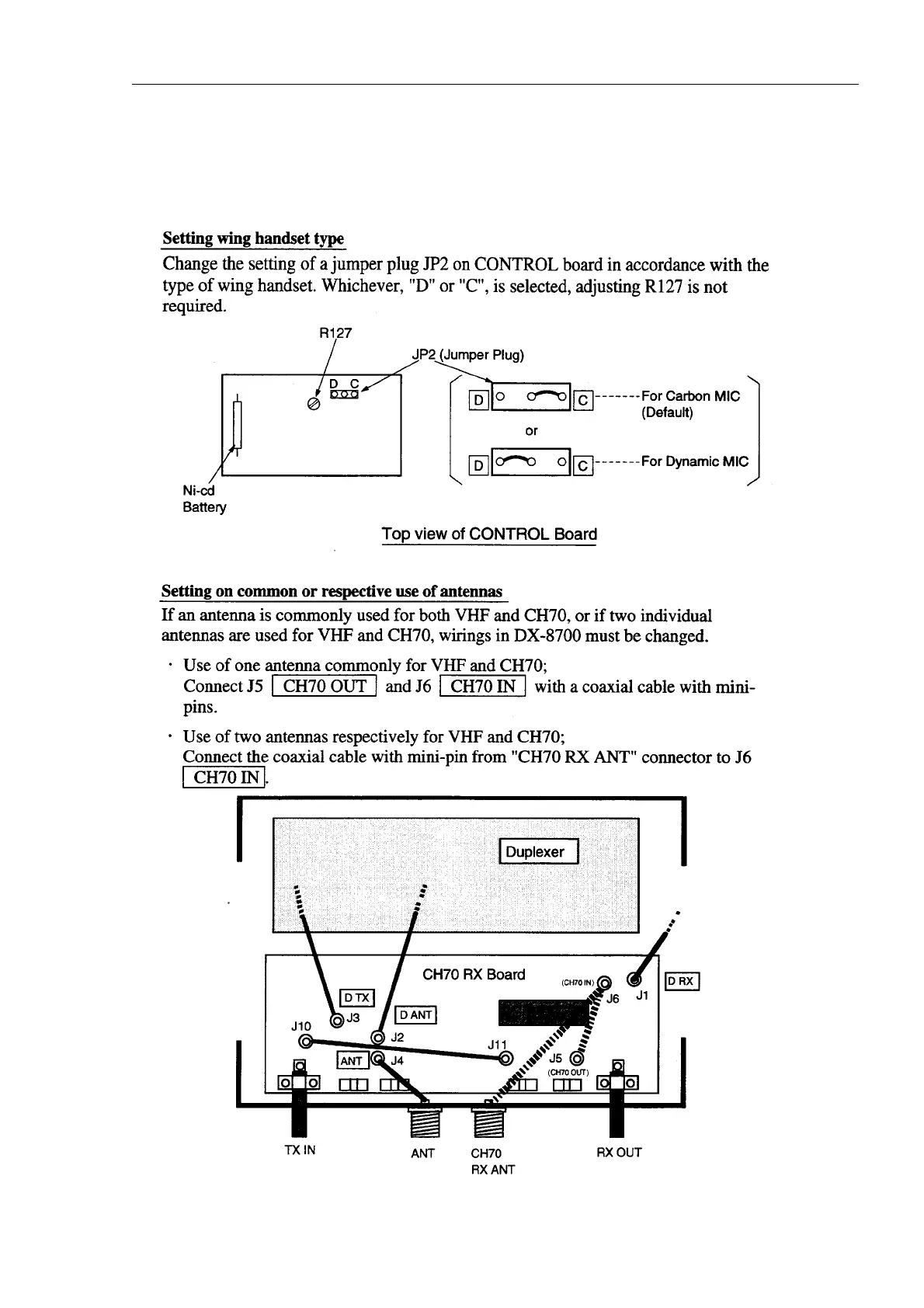

4. Jumper settings

Handset

-HS-6000FZ6 (Carbon MIC)

-HS-6000FZ5 (Dynamic MIC)

MIC Receptacle Box

-RBD-VHF (For Carbon MIC)

-RBD-VHF –B (For Dynamic MIC)
