MODEL MENU (HELICOPTER)
This section contains information on the
commands that apply to helicopters only. For
instructions on Airplanes and Sailplanes, refer
to the sections pertaining to those aircraft. Each
of these functions can be set independently for
different fl ight conditions. To get to these settings,
touch the desired function button to be entered.
Use the Model Type function in the Linkage
Menu to select the swash type matched to the
fuselage beforehand. If you later change model
types, all settings will be lost.
Also, add flight conditions at the Condition
Select screen before setting the model data at each
function. (Up to 8 conditions can be used)
The AFR function, fuel mixture and other
functions common to all model types, are described
in a separate section.
●Return to Home screen

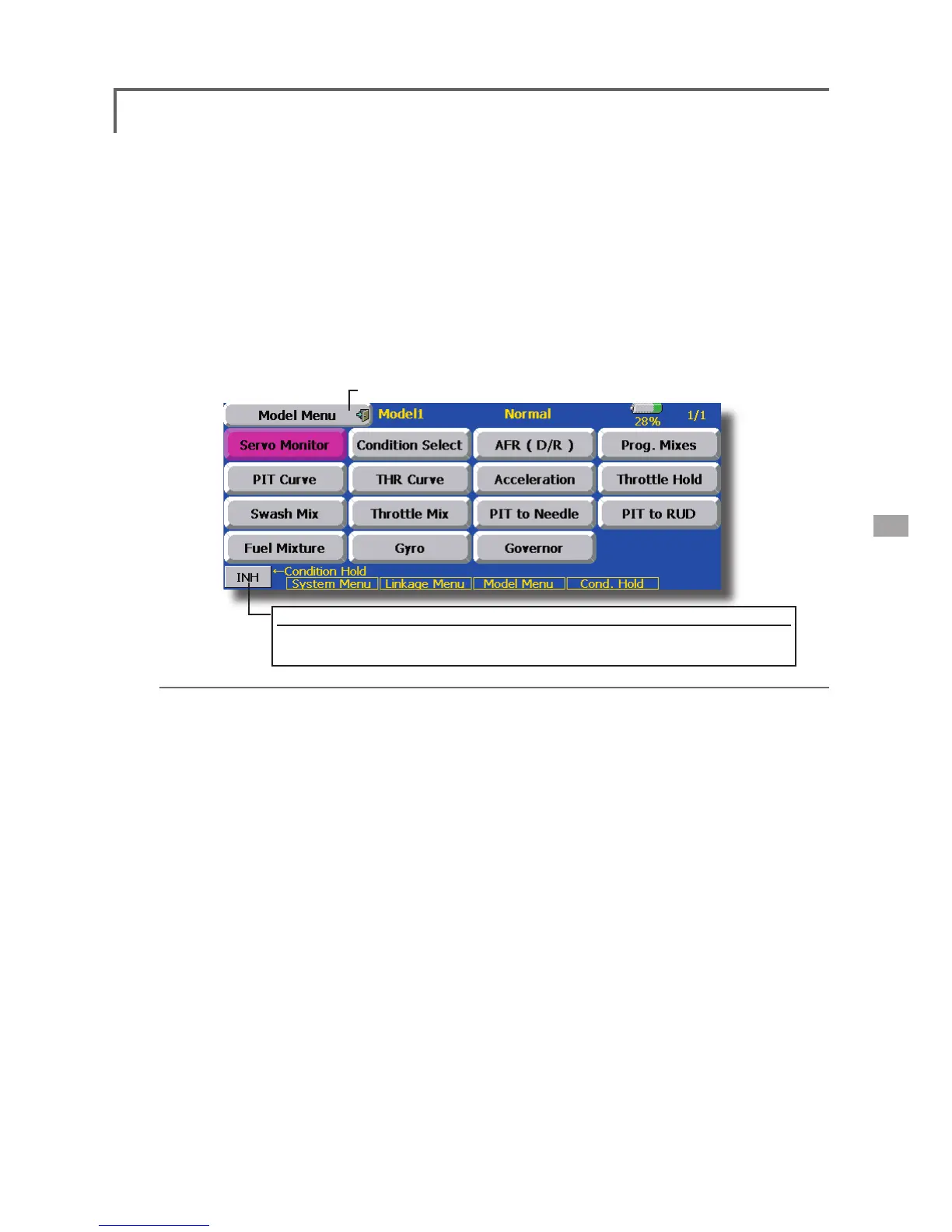

● Touch the Model Menu button of the Home screen to
call the menu shown below. Touch the button of the
function you want to set to call the setup screen.
Model Menu functions (helicopter) list
Condition Hold function
● You can turn on and off the Condition Hold function by the button on the
lower left of the screen only when the Throttle Stick is on the slow side.
107
<Model Menu (Helicopter Functions)>
PIT Curve:
Adjusts response in different fl ight conditions
THR Curve:
Throttle curve and hovering trim adjustment
Acceleration:
Counteracts torque due to sudden throttle and pitch commands
Throttle Hold:
Moves the throttle to idle during autorotation
Swash Mix:
Compensates for each control response
Throttle Mix:
Compensates for power loss when cyclic applied
Pit to Needle:
Adjusts response curve in different fl ight conditions
Pit to RUD:
Handles torque changes from pitch angle inputs
Fuel Mixture:
Commands a second servo to adjust the fuel mixture at the carburetor
Gyro:
Used to switch gyro sensitivity
Governor:
Used to switch RPM of the helicopterʼs head
To Next Page
