Transmitter controls
Cautions on handling antenna
WARNING
Be sure to attach the antenna before operation.
*Antenna is stored in the antenna storage box in the trans-
mitter.
Extend the antenna to the full extent, and make
sure that the antenna is securely locked before
operation.
Never hold the antenna alone.
*Hold the carrying bar, otherwise the main body can be
damaged.

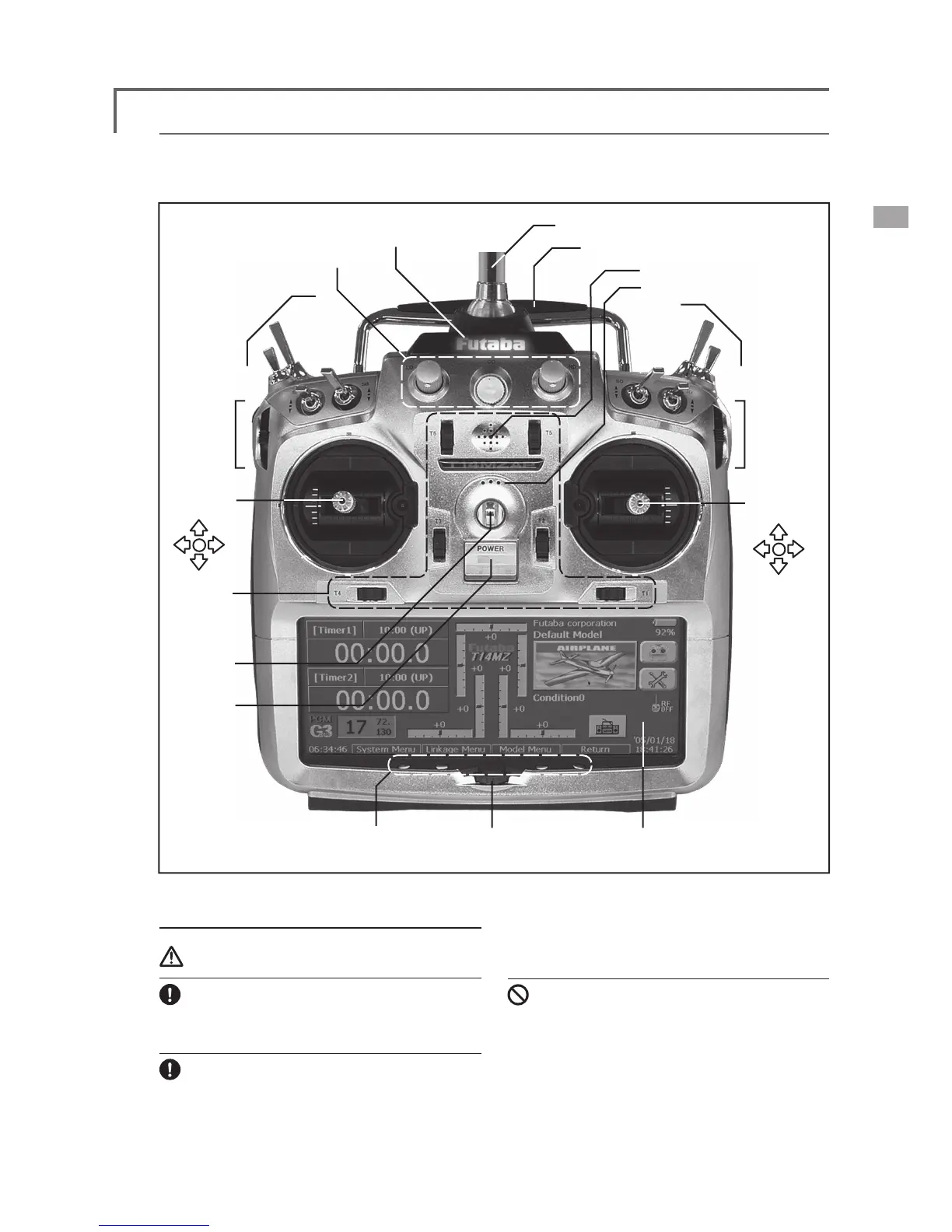

●Antenna
●Volume
●Monitor LED
●Direct Key ●Rotary Key ●LCD Display (Touch Panel)
●Carring Bar
●Speaker
●Microphone
●Switch Block
(SC,SD,SG,SH)
●Switch Block
(SA,SB,SE,SF)
●Slide
Lever
(LS,LST)
●Digital
Trim
●Hook
●Power
Switch
(T1-T6)
(LD,CD,RD)
(S1-S4)
●Slide Lever
(RST,RS)
●Stick
(J1)
(J2)
●Stick
(J4)
(J3)
